|5/F,Building A,Feiyang Industrial Park, No.8 Longchang Rd, Baoan Districe,Shenzhen, China,email@example.com|
|Place of Origin:||Shenzhen,China|
|Brand Name:||AscentOptics/Neuter, OEM|
|Minimum Order Quantity:||1PCS|
|Packaging Details:||10 or 20PCS /Plastic tray, 1PC/Gift box|
|Delivery Time:||Within 1-3 working days after PO confirmed|
|Payment Terms:||T/T, Western Union, L/C|
|P/N:||EPON-ONT-SFF||Datarate:||TX 1.25G/RX 1.25G|
|Wavelength:||Tx1310nm / Rx1490nm||Distance:||20KM|

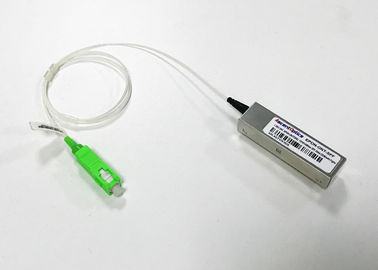

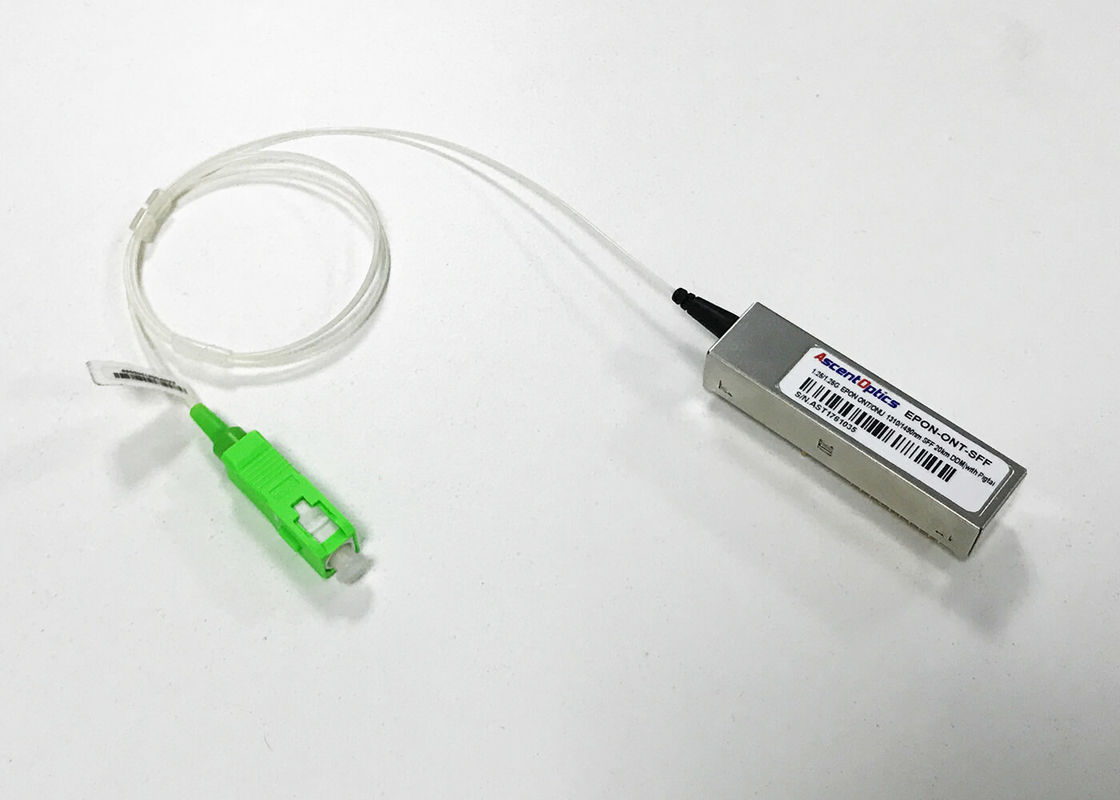

1310Nm 1490nm ONT Optical EPON GPON Transceiver SFF Module TX 1.25G / RX 1.25G
|Datarate||TX 1.25G/RX 1.25G|
|Wavelenth||Tx1310nm / Rx1490nm|
|Application||Gigabit Ethernet Passive Optical Networks (EPON)/FTTx|
|Operating Temperature||-40℃~ +85℃|
EPON ONU Optical Transceiver SFF Module TX 1.25G/RX 1.25G 20km
The EPON ONT Transceiver is designed for Gigabit-capable Passive Optical Network(EPON)transmission. The module incorporates 1310nm burst-mode transmitter and 1490nm continuous-mode receiver.
The transmitter section uses a 1310nm DFB laser and an integrated BM laser driver which designed to perform very small burst enable/disable delay time. The laser driver also includes digital APC and temperature
compensation circuit, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging.
The receiver section uses an integrated 1490nm APD photodiode and preamplifier mounted together. It has the function that indicates receiver signal-detected status (active high).
An integrated WDM coupler can separate 1490nm input light and 1310nm output light.
The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
