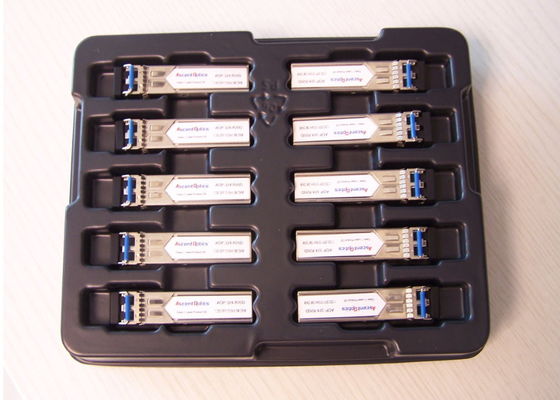

Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet

Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet

    • Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet
    • Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet
    • Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet
    • Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet
    • Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet
  • Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: AscentOptics/Neuter, OEM
    Certification: CE/FCC/RoHS/TUV/UL
    Model Number: AOP-324-R20(D)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
    Delivery Time: Within 1-3 working days after PO confirmed
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50,000pcs/Month
    Detailed Product Description
    Product Name: SFP Optical Transceiver Datarate: 1.25G
    Wavelength: 1310nm Transmitter: FP
    Connector: LC Application: GE



    Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet







    Specification:



    P/N

    AOP-324-R20

    Datarate

    1.25G

    Wavelenth

    1310nm

    Distance

    20KM

    Transmitter

    FP

    Receiver

    PIN

    Media

    SMF

    DDM/DOM

    Digital (optional)

    Connector

    LC

    Application

    GE

    Operating Temperature

    0℃~ +70℃

    Voltage Supply

    3.3V

    Certification

    CE/FCC/RoHS/TUV/UL

    Brand

    AscentOptics/Neuter, OEM








    SFP 1.25Gb/s 1310nm 20km single-mode Gigabit Ethernet






    Description:


    The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network vendors. SFP transceivers are designed to support SONET, Gigabit Ethernet, Fibre Channel, and other communications standards.



    The AscentOptics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.







    Applications



    • Gigabit Ethernet/Fast Ethenet
    • Fiber Channel
    • SDH/SONET/ATM
    • Switch to Switch interface
    • Router/Server interface
    • Other optical transmission systems







    Competitive advantage:

    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
    4. OEM/ODM  Customized label
    5. Keep stock,Fast delivery



    Neuter Single-Mode SFP Optical Transceiver 1.25Gb/s 1310nm 20km Gigabit Ethernet
