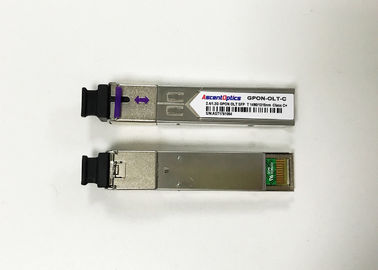

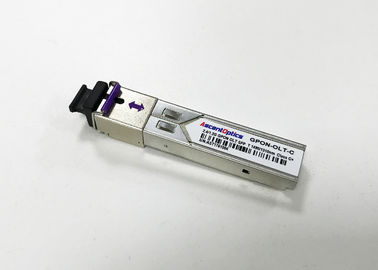

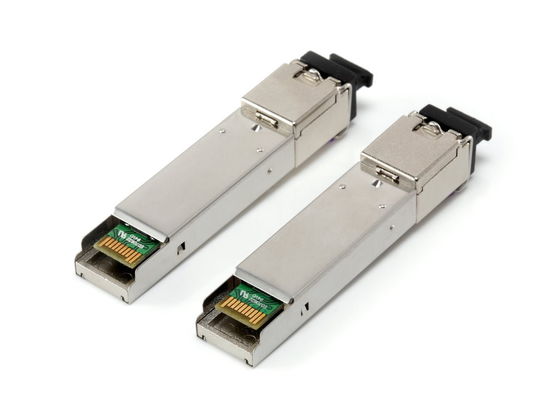

GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector

GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector

  • GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector
  • GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector
  • GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector
GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/ Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GPON-OLT-C
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
P/N: GPON-OLT-C Distance: 20KM
Wavelength: Tx1490nm / Rx1310nm Aplication: Gigabit Ethernet Passive Optical Networks /FTTx
Media: SMF Connector: SC
High Light:

sfp gigabit ethernet

,

ethernet optical transceiver



GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector


Specification:





Features:



Single fiber bi-directional data links asymmetric TX 2.5Gbps/RX1.25bps application

1310nm Burst-mode APD/TIA receiver and 1490nm Continuous DFB laser Transmitter (with WDM)

SFP metallic package

0 to 70oC operating ambient temperature

Single SC receptacle optical interface compliant

Hot-pluggable

+3.3V single power supply

Low power consumption

Fast settling time with immunity to long steams of CID

Digitalized burst mode optical power monitoring

LVPECL compatible data input and output interface

LVTTL receiver reset control

LVTTL receiver burst-power-detect indication

Excellent EMI and EMC characteristics

Class 1 Laser eye safety standard

ESD protection function

RoHs compliant





P/N GPON-OLT-C
Datarate 2.488 Gbit/s downstream 1.244 Gbit/s upstream
Wavelenth Tx1490nm / Rx1310nm
Distance 20KM
Transmitter DFB
Receiver APD
Media SMF
Connector SC
Application Gigabit Ethernet Passive Optical Networks (GPON) /FTTx
Operating Temperature 0℃~ +70℃
Voltage Supply 3.3V
Certification CE/FCC/RoHS/TUV/UL
Brand AscentOptics/Neuter, OEM







Description:



The GPON OLT Transceiver is designed for Gigabit-capable Passive Optical Network(GPON)transmission. The module incorporates 1490nm DFB continuous-mode transmitter and 1310nm burst-mode APD receiver.



The transmitter section uses a high efficiency 1490nm DFB laser and an integrated laser driver which is designed to be class-1 eye safety under any single fault. The laser driver includes APC and temperature compensation functions, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging.



The receiver section uses an integrated APD detector and burst mode preamplifier mounted together. To provide fast settling time with immunity to long streams of Consecutive Identical Digits(CID), the receiver requires a reset signal provided by the media access controller(MAC). The receiver has fast SD function, the rising time is about 5ns, when reset signal arrived, the SD signal will be turned to low, and the noise in the guard time will be squelched.



The receiver includes digitalized burst mode optical power monitoring function, which converses any of a received ONU optical power directly in digital, with a Trigger input from system. When rising edge of Trigger detected, the DDM processor starts a burst optical power conversion, the digital result is available via DDM interface after Burst Optical Power Conversion Time. Trigger pulse width should be more than Burst Optical Power Conversion Holding Time.











Applications:



Optical transceiver for Gigabit-capable Passive Optical Networks (GPON) Class C+ OLT side
