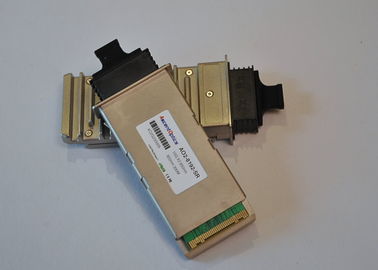

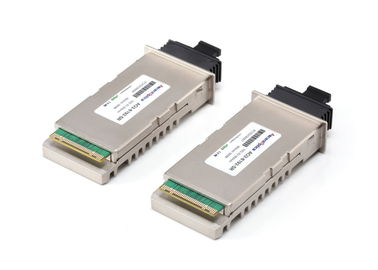

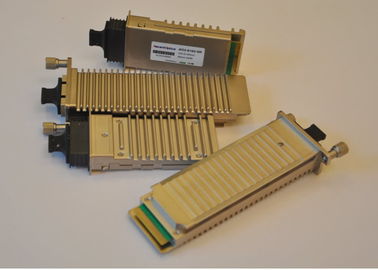

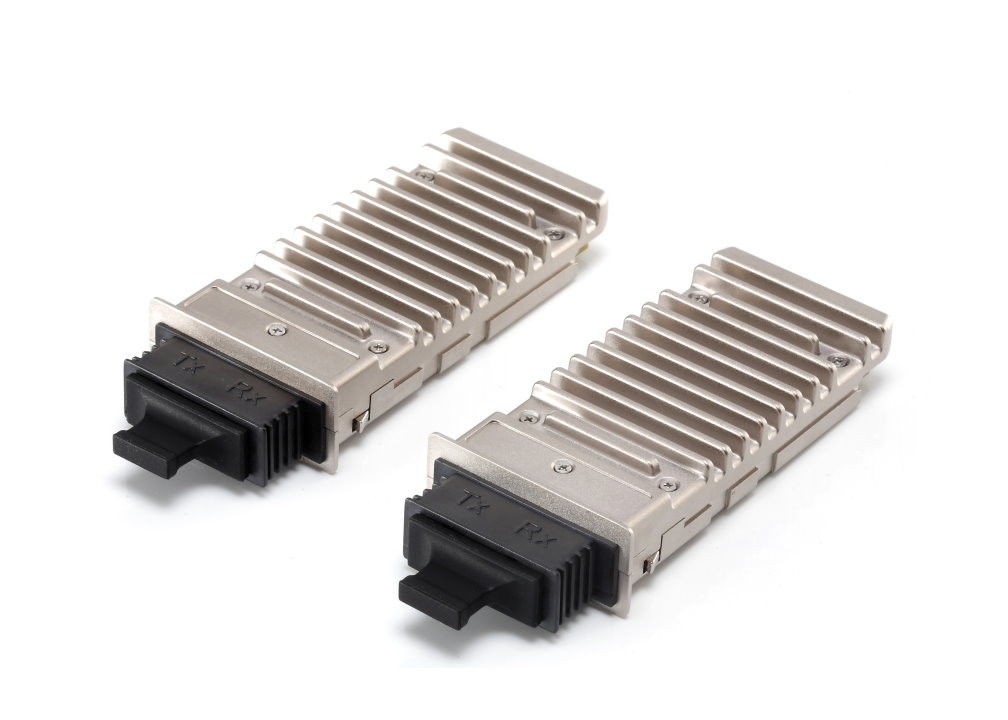

10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER

10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER

  • 10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER
  • 10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER
  • 10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER
  • 10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER
10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: X2-10GB-ER-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: 10G X2 Module Datarate: 10.3G
Wavelenth: 1550nm Distance: 40KM
Application: Datacom 10G Ethernet/10x FC Connector: SC
High Light:

10g module

,

10g x2 transceiver


10GBASE-ER 10G X2 CISCO Compatible Transceiver Module 1550-nm SC X2-10GB-ER




Specification:



P/N

X2-10GB-ER-A

Datarate

10.3G

Wavelength

1550nm

Distance

40KM

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

SC

Application

Datacom 10G Ethernet/10x FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM



Description:



10GBASE-ER X2 transceiver module for SMF, 1550-nm wavelength, SC duplex connector

10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.Support 10GBASE Ethernet

Hot-swappable input/output device plugs into an Ethernet X2 port of a switch or router to link the port with the network .

Provides flexibility of interface choice.Supports "pay-as-you-populate" model

Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link



Features

  • Compatible with X2 MSA Rev2.0b
  • Support of IEEE 802.3ae 10GBASE-ER at 10.3125Gbps
  • Transmission Distance up to 40Km(SMF)
  • SC Receptacle 1550nm Cooled EA-DFB Laser
  • SC Duplex Optical Connector
  • Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
  • Management and control via MDIO 2-wire interface
  • Power Supply : +5V, +3.3V, APS(+1.2V)
  • Diagnostic Optics Monitoring
  • Temperature Range: 0~ 70 °C
  • ROHS Compatible



Applications

  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Other 10Gbps Ethernet Transmission System



Cisco 10G X2 transceiver

X2-10GB-SR= X2-10GB-SR-A 10GBASE-SR X2 transceiver module for MMF, 300M
X2-10GB-LR= X2-10GB-LR-A 10GBASE-LR X2 transceiver module for SMF,10km
X2-10GB-LRM= X2-10GB-LRM-A 10GBASE-LRM X2 transceiver module for MMF 220M
X2-10GB-ER= X2-10GB-ER-A 10GBASE-ER X2 transceiver module for SMF, 40km
X2-10GB-ZR= X2-10GB-ZR-A 10GBASE-ZR X2 transceiver module for SMF, 80km
X2-10GB-CX4=  X2-10GB-CX4-A X2 transceiver module for CX4 cable, copper, InfiniBand 4X connector
X2-10GB-LX4=  X2-10GB-LX4-A  X2 transceiver module for MMF,1310nm wavelength, SC duplex connector
CWDM-X2-xxxx= CWDM-X2-xxxx-A 10GBASE CWDM  X2 transceiver module for SMF, 40km                   (xxxx--1470/1490/1510/1530/1550/1570/1590/1610)
CWDM-X2-xxxx CWDM-X2-xxxx-A 10GBASE CWDM  X2 transceiver module for SMF, 80km                    (xxxx--1470/1490/1510/1530/1550/1570/1590/1610)
DWDM-X2-xx.xx DWDM-X2-xx.xx-A 10GBASE DWDM X2 transceiver module for SMF, 40km
DWDM-X2-xx.xx DWDM-X2-xx.xx-A 10GBASE DWDM X2 transceiver module for SMF, 80km




Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
