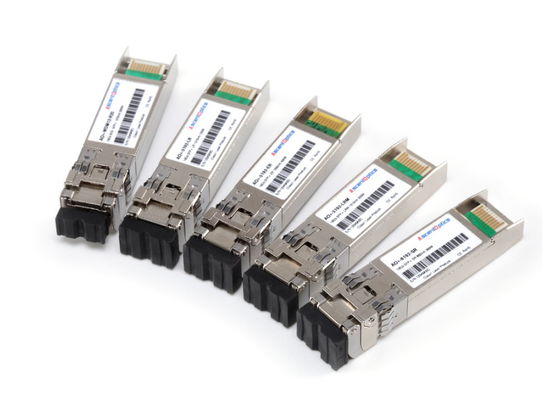

10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel

10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel

  • 10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel
  • 10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel
  • 10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel
  • 10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel
  • 10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel
10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: AO+-CXXXX-R40
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: SFP+ Optical Transceiver Datarate: 10G/ps
Distance: 40KM Wavelength: CWDM 1470 1490 1510 1530 1550 1570 1590 1610
Application: Datacom 10G Ethernet/ 2x 4x 8x FC DDM/DOM: YES
High Light:

sfp fiber optic transceiver

,

sfp transceiver module



10G CWDM 40KM Singlemode SFP+ Optical Transceiver 1510nm For 2x 4x 8x Fibre Channel




Specification:



P/N

AO+-CXXXX-R40

Datarate

10G/ps

Wavelenth

CWDM  1470 1490 1510 1530 1550 1570  1590  1610

Distance

40KM

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 2x 4x 8x FC

Operating Temperature

-5℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM


10G CWDM SFP+ 1470-1610nm 40KM Single-mode Datacom 10G Ethernet/ 2x 4x 8x FC


Description:



The AscentOptics 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link



Features

  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/EW
  • Electrical interface compliant to SFF-8431 specifications.
  • 2-wire interface for management specifications compliant with SFF 8472
  • Operating case temperature: 0 to 70 °C
  • All-metal housing for superior EMI performance
  • Low power consumption, less than1.6 w
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • RoHS compliant



Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes



AscentOptics 10G SFP+



P/N Data Rate Distance Wavelength Media Connector
AO+-8192-SR 10G/ps 300M 850nm MM LC
AO+-3192-LR 10G/ps 10KM 1310nm SM LC
AO+-3192-LRM 10G/ps 220M 1310nm MM LC
AO+-5192-ER 10G/ps 40KM 1550nm SM LC
AO+-5192-ZR 10G/ps 80KM 1550nm SM LC
AO+-CXXXX-R40 10G/ps 40KM CWDM XXXXnm SM LC
AO+-CXXXX-R80 10G/ps 80KM CWDM XXXXnm SM LC
AO+-DXX-R40 10G/ps 40KM DWDM CHXX SM LC
AO+-DXX-R80 10G/ps 80KM DWDM CHXX SM LC
AO+-DTXX-R80 10G/ps 80KM DWDM tunable CHXX SM LC




Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
