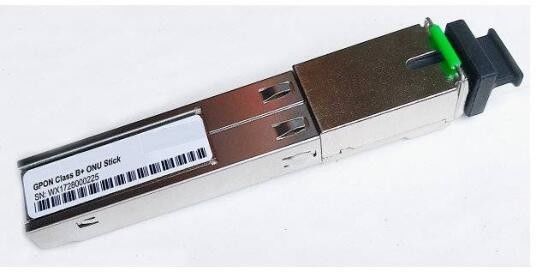

SFP GPON-ONU-STICK GPON Transceiver TX 1.25G / RX 2.5G 20KM Tx1310nm / Rx1490nm SM
Specification:
| P/N | GPON-ONU-STICK |
| Datarate | TX 1.25G/RX 2.5G |
| Distance | 20KM |
| Wavelenth | Tx1310nm / Rx1490nm |
| Media | SM |
| DDM/DOM | YES |
| Connector | SC |
| Application | Gpon |
| Operating Temperature | -40℃～+85℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/UL |
| Brand | AscentOptics/Neuter, OEM |
Features
♦ Simplex SC/APC Connector, Integrated Diplexer Transceiver
♦ SFP MSA, digital diagnostics SFF-8472 Compliant
♦ Compliant to FSAN G.984.2 Specifications
♦ 1244 Mbps Tx, 2488 Mbps Rx Asymmetric Data Rate
♦ Operating case temperature: -40~85°C
♦ Subscriber location identifier(SLID)
♦ PON Link Status notification
♦ Dying Gasp notification
♦ Supports Time of Day and 1PPS interface
♦ Response the TX power shut-down command from OLT when OLT detect anomaly
♦ TC Layer GEM encapsulation mode
♦ OMCI support per ITU-T G.988
♦ 28 dB link budget; Class B+, 20 km reach
♦ Compliant to IEC-60825 Class 1 laser diode
♦ RoHS compliant
GPON SFP with MAC is a G.984.2 (GPON) Optical Network Terminal (ONT) with Small
Form-factorPluggable (SFP) packaging. This product integrates a bi-directional optical
transceiver function and GPON MAC function. By being plugged into the customer premise
equipment (CPE) with standard SFP port directly, it provides an asymmetric1.244Gbps upstream/ 2.488 Gbpsdownstream GPON uplink to the CPE without requiring separate power supply.
This product supports a sophisticated ONT management system, including alarms, provisioning,
DHCP and IGMP functions for a stand-alone IPTV solution at the ONT.
This product supports Time of Day and 1PPS interface, can be managed from the OLT over the
GPON using G.988 OMCI. It fits seamlessly into existing communications equipment, providing
service providers with a smooth upgrade to GPON. The solution vastly decreases the installation
costs of deploying fiber access in MDUs and enables service providers to improve their revenue
streams while decreasing OPEX.
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
