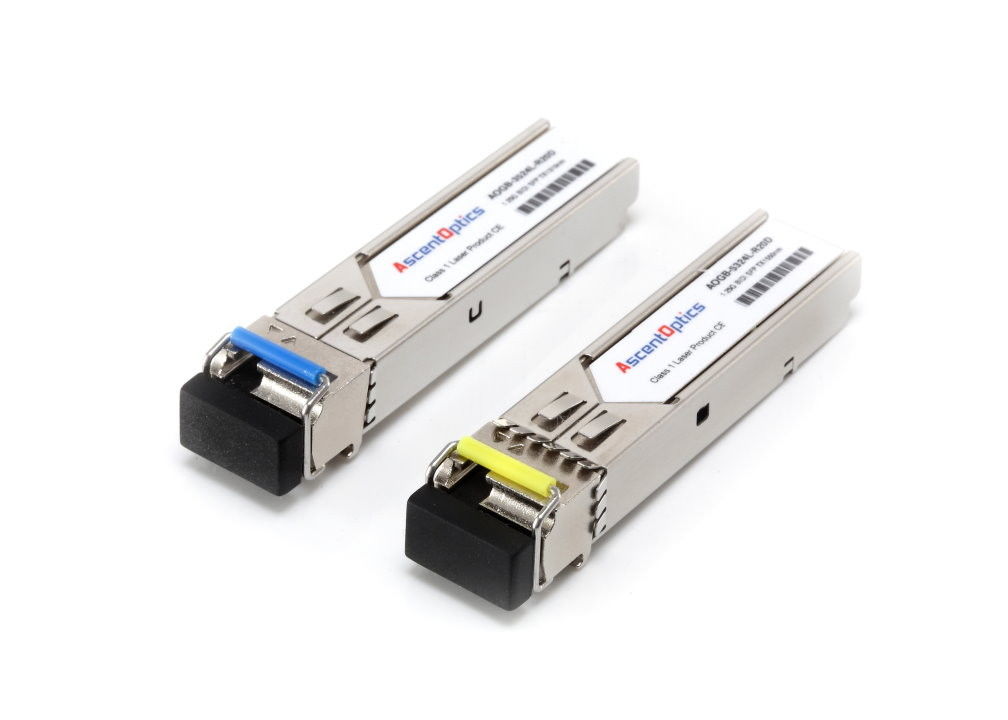

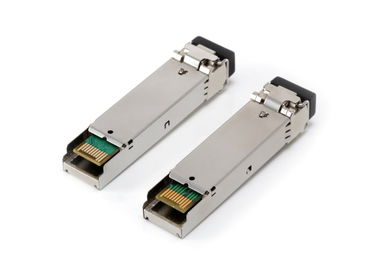

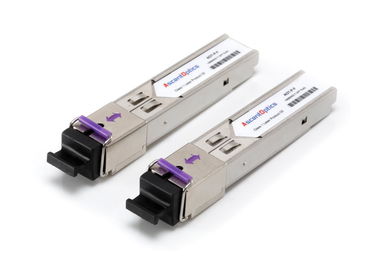

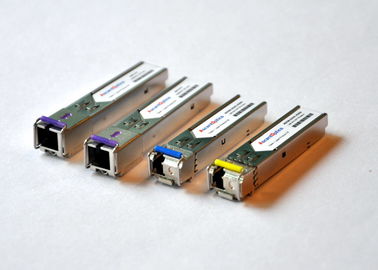

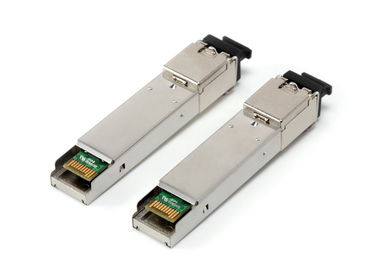

Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U

Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U

  • Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U
  • Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U
  • Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U
  • Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U
  • Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U
Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GLC-FE-100BX-U-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: CISCO Compatible Transceivers Datarate: 155Mb/s
Distance: 20KM Connector: LC/SC
Wavelength: Tx1310nm / Rx1550nm Application: OC-3/STM-1/Fast Ethernet
High Light:

cisco transceiver module

,

cisco sfp transceivers


Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U







Specification:



P/N

GLC-FE-100BX-U-A

Datarate

155Mb/s

Distance

20KM

Wavelength

Tx1310nm / Rx1550nm

Transmitter

FP

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC/SC

Application

OC-3/STM-1/Fast Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM







Description:



100BASE-BX10-U SFP module for 100-MB ports, 1310 nm TX/1550 nm RX wavelength, 10 km over single-strand SMF



The AscentOptics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.







Applications



  • Gigabit Ethernet/Fast Ethenet
  • Fiber Channel
  • SDH/SONET/ATM
  • Switch to Switch interface
  • Router/Server interface
  • Other optical transmission systems





Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery





Tx1310nm CISCO Transceiver Module for 100-MB Ports GLC-FE-100BX-U 0
