Single Mode 10 Gigabit Ethernet Xenpak Transceiver For Ethernet

Single Mode 10 Gigabit Ethernet Xenpak Transceiver For Ethernet

  • Single Mode 10 Gigabit Ethernet Xenpak Transceiver For Ethernet
  • Single Mode 10 Gigabit Ethernet Xenpak Transceiver For Ethernet
Single Mode 10 Gigabit Ethernet Xenpak Transceiver For Ethernet
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: 10112-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: 10G Xenpak Module, Optical Transceiver Module Datarate: 10.3G
Wavelength: 1550nm Distance: 40KM
Application: 10GE Ethernet,10GE Core-routers,10GE Storage Ect. Form Factor: XENPAK
High Light:

cisco 10g module

,

cisco xenpak


Single Mode 10 Gigabit Ethernet Xenpak Transceiver For Ethernet

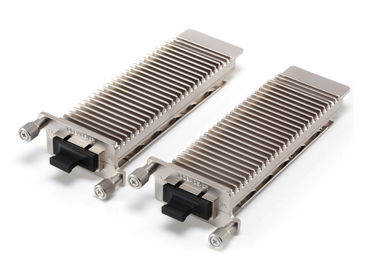

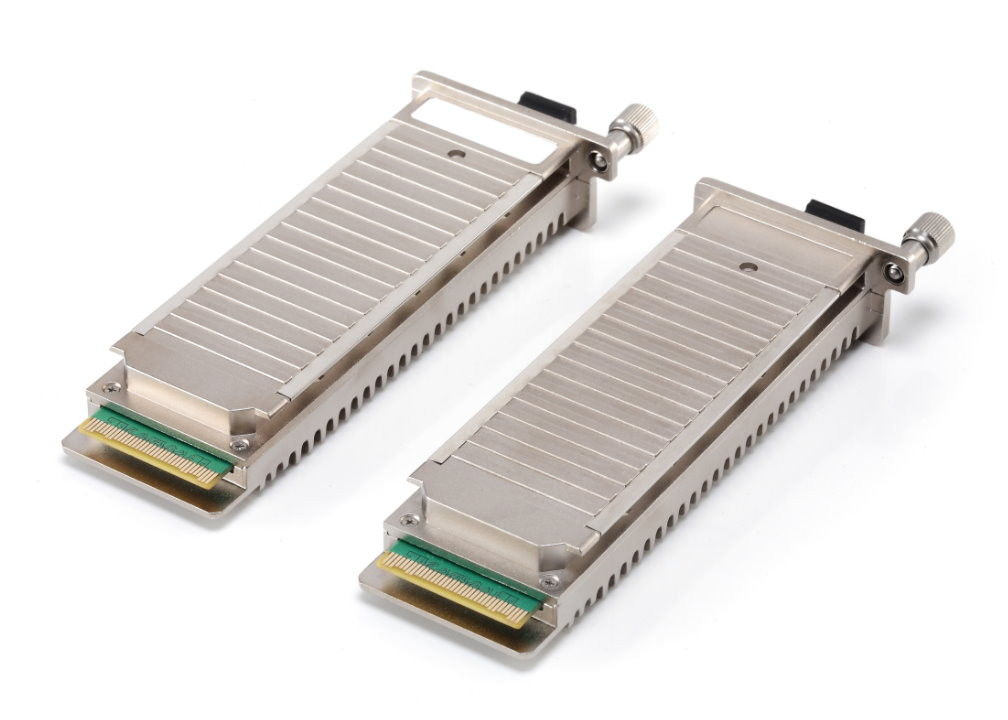

10 Gigabit Ethernet XENPAK Transceiver, 1550 nm, up to 40 km on single-mode fiber
SC connectorSupports 10GBASE Ethernet.Hot-swappable input/output device plugs into an Ethernet XENPAK port of a switch or router to link the port with the network.Provides flexibility of interface choice.Supports "pay-as-you-populate" model.Interoperable with respective 10-Gigabit X2, XFP and SFP+ modules on the same link




Features

  • Compatible with XENPAK MSA Rev.3.0
  • Support of IEEE802.3ae 10GBASE-ER
  • Transmission Distance up to 40km(SMF)
  • Uncooled directly modulated 1550nm Cooled EA-DFB Laser
  • Temperature Range 0 to 70°C
  • Adaptable Power Supply (APS:+1.2V)
  • SC duplex Optical connector
  • Hot pluggable 70-pin connector with XAUI electrical interface
  • Management and control via MDIO 2-wire interface
  • Compatible with RoHS


Applications

  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Other 10Gbps Ethernet Transmission System


Specifications:

P/N

10112-A

Datarate

10.3G

Distance

40KM

Wavelength

1550nm

Transmitter

EML

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

SC

Application

Datacom 10G Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

1.2V/3.3V/5V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM



Extreme 10G Xenpak


10110 10110-A 10 Gigabit Ethernet XENPAK Transceiver, SR, 850 nm, MMF, 300 m range
10111 10111-A 10 Gigabit Ethernet XENPAK Transceiver, LR, 1310 nm, SMF, 10 Km range
10112 10112-A 10 Gigabit Ethernet XENPAK Transceiver, ER, 1550 nm, SMF, 40 Km range
10113 10113-A 10GBASE-ZR XENPAK 1550nm 80km Optical Transceiver
10114 10114-A LX4 XENPAK 10 Gigabit Ethernet XENPAK, 1310nm WWDM, MMF 300m and SMF 10km, SC
10116E  10116E-A LW XENPAK WAN PHY XENPAK, 10GBASE-LW, 1310nm, up to 10 KM over SMF, SC, RoHS-5




Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
