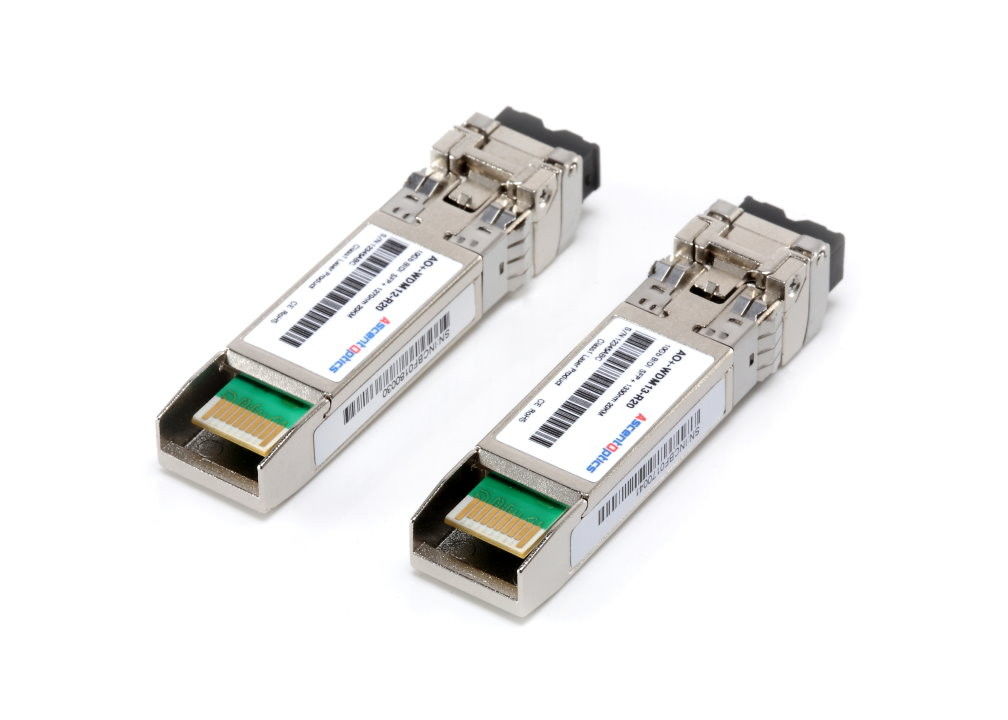

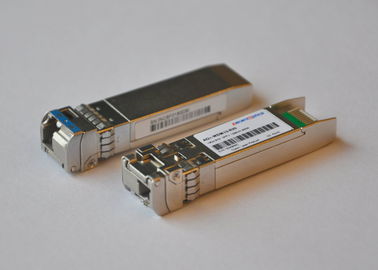

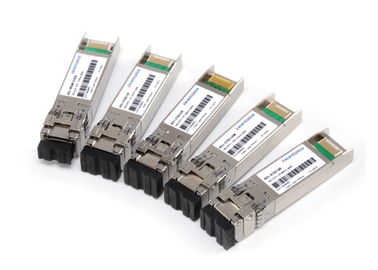

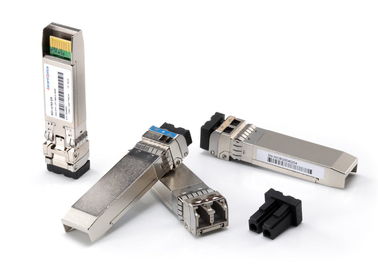

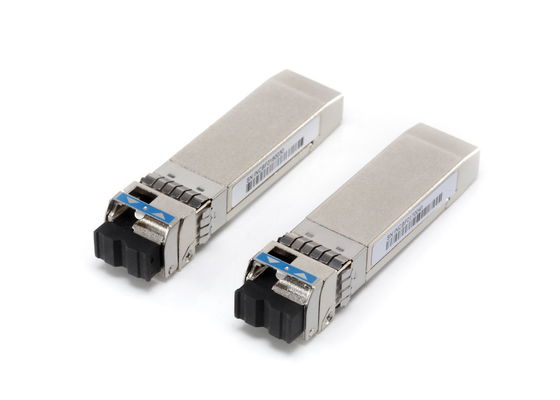

RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX

RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX

  • RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX
  • RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX
  • RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX
  • RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX
  • RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX
RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: AO+-WDM12-R20
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: SFP+ Optical Transceiver Datarate: 10G/ps
Distance: 20KM Wavelength: TX 1270nm / RX 1330nm
Application: Datacom 10G Ethernet/ 2x 4x 8x FC DDM/DOM: YES
High Light:

sfp fiber optic transceiver

,

optical transceiver sfp


RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX



Specifications:



P/N

AO+-WDM12-R20

Datarate

10G/ps

Wavelenth

TX 1270nm / RX 1330nm

Distance

20KM

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 2x 4x 8x FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM



10G BIDI (WDM) SFP+ TX 1270nm/RX 1330nm 20KM Single-mode Datacom 10G Ethernet/ 2x 4x 8x FC



Description:



The AscentOptics 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link



Features

  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR, single LC connector for bi-directional application, over 20km SMF

  • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

  • 1270/1330nm DFB transmitter, PIN photo-detector

  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

  • Part number(-40°C to 85°C):

  • -AO+-WDM12-R20,   1270TX/1330RX

  • -AO+-WDM13-R20,   1330TX/1270RX

  • line side, client side loopback function

  • Advanced firmware allow customer system encryption information to be stored in transceiver

  • ROHS compliant



Applications



  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes



AscentOptics SFP+

BIDI (WDM) SFP+
P/N Data Rate Distance Wavelength FP PD Media
AO+-WDM13-R20 10G/ps 20KM 1330 DFB PIN SM
AO+-WDM12-R20 10G/ps 20KM 1270 DFB PIN SM
AO+-WDM13-R40 10G/ps 40KM 1330 DFB PIN SM
AO+-WDM12-R40 10G/ps 40KM 1270 DFB PIN SM




Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
