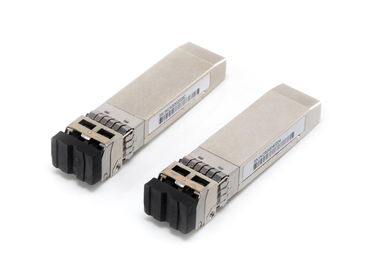

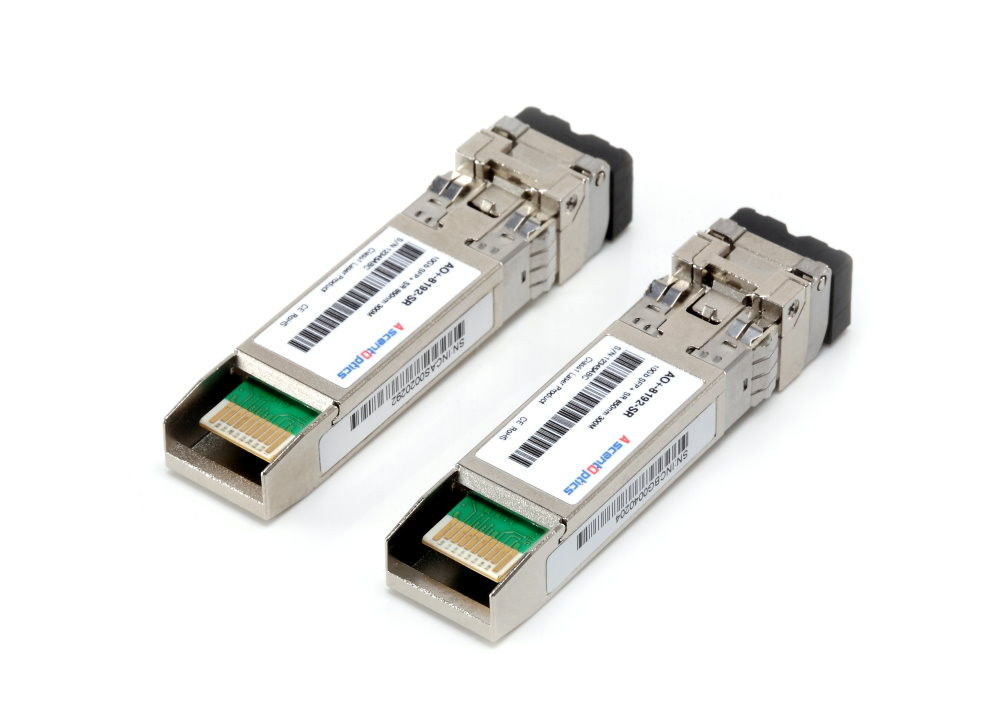

LC Duplex Connector SFP + Optical Transceiver SFP-10G-ER-AL

LC Duplex Connector SFP + Optical Transceiver SFP-10G-ER-AL

  • LC Duplex Connector SFP + Optical Transceiver SFP-10G-ER-AL
  • LC Duplex Connector SFP + Optical Transceiver SFP-10G-ER-AL
LC Duplex Connector SFP + Optical Transceiver SFP-10G-ER-AL
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: SFP-10G-ER-AL-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: SFP+ Optical Transceiver Datarate: 10.3G/ps
Distance: 40KM Wavelength: 1550nm
Application: 10 Gigabit Ethernet DDM/DOM: YES
High Light:

optical transceiver sfp

,

sfp transceiver module



LC Duplex Connector SFP + Optical Transceiver SFP-10G-ER-AL



Alcatel-lucent 10GBASE-ER SFP+ transceiver module for SMF, 1550-nm, 40km, LC duplex connector

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link



Features

  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/EW

  • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

  • 1550nm cooled EML transmitter with TEC, PIN photo-detector

  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

  • perating case temperature: 0 to 70 °C

  • ll-metal housing for superior EMI performance

  • Low power consumption, less than 1.5w

  • Advanced firmware allow customer system encryption information to be stored in transceiver

  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth

  • RoHS compliant



Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes



Specifications:



PN

SFP-10G-ER-AL-A

Datarate

10.3G/ps

Distance

40KM

Wavelength

1550nm

Transmitter

EML

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC

Application

 10 Gigabit Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM



Alcatel-lucent 10G SFP+



10G SFP+
SFP-10G-SR-AL SFP-10G-SR-AL-A 10GBASE-SR SFP+   850nm MMF  300M
SFP-10G-LR-AL SFP-10G-LR-AL-A  SFP+ 10GBASE-LR;LC;1310nm;SMF up to 10km
SFP-10G-LRM-AL SFP-10G-LRM-AL-A  SFP+ 10GBASE-LRM;LC;1310nm;MMF up to 220m
SFP-10G-ER-AL SFP-10G-ER-AL-A  SFP+ 10GBASE-ER;LC;1550nm;SMF up to 40km



iSFP-10G-SR iSFP-10G-SR-A 10GBASE-SR SFP+   850nm MMF  300M
iSFP-10G-LR iSFP-10G-LR-A  SFP+ 10GBASE-LR;LC;1310nm;SMF up to 10km





Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
