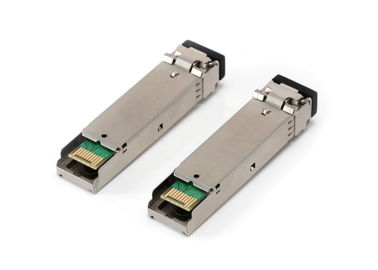

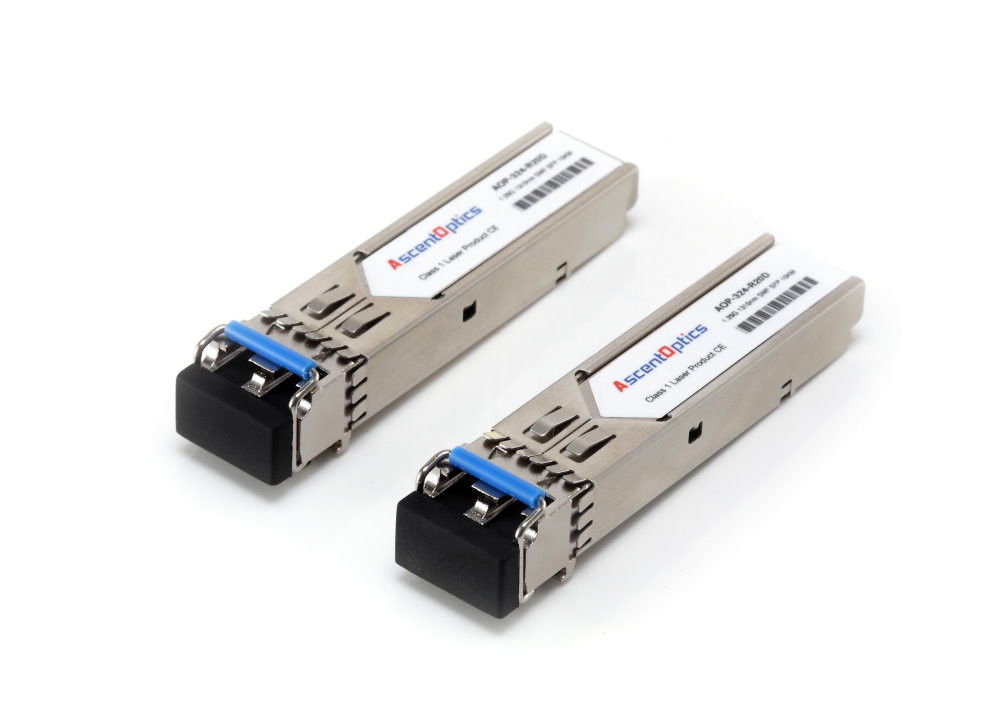

LC 40Km 1310nm SFP Optical Transceiver Single-Mode SFP-FE-LH40-SM1310

LC 40Km 1310nm SFP Optical Transceiver Single-Mode SFP-FE-LH40-SM1310

  • LC 40Km 1310nm SFP Optical Transceiver Single-Mode SFP-FE-LH40-SM1310
  • LC 40Km 1310nm SFP Optical Transceiver Single-Mode SFP-FE-LH40-SM1310
LC 40Km 1310nm SFP Optical Transceiver Single-Mode SFP-FE-LH40-SM1310
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: SFP-FE-LH40-SM1310-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: SFP Optical Transceiver Datarate: 100Mb/s
Wavelength: 1310nm Transmitter: FP
Connector: LC Application: OC-3 / STM-1 / Fast Ethernet
High Light:

cisco sfp modules

,

sfp transceiver module



LC 40Km 1310nm SFP Optical Transceiver Single-Mode SFP-FE-LH40-SM1310







Features

● Data rate 155M/622M/1.25G/2.5G
● 850nm/1310nm/1550nm laser diode transmitter
● PIN/APD photodiode receiver
● SFP MSA package with duplex LC connector
● +3.3V single power supply
● Digital Diagnostic Monitor Interface
● Very low EMI and excellent ESD protection
● RoHS compliant products available
● Distance from 100m to 120km
● CWDM/DWDM option







H3C SFP 1000Base-LH (LC/40Km/1310nm/Single-Mode)



The AscentOptics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.







Applications

  • Gigabit Ethernet/Fast Ethenet
  • Fiber Channel
  • SDH/SONET/ATM
  • Switch to Switch interface
  • Router/Server interface
  • Other optical transmission systems





Specifications:



P/N

SFP-FE-LH40-SM1310-A

Datarate

100Mb/s

Wavelength

1310nm

Distance

40KM

Transmitter

FP

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC

Application

OC-3 / STM-1 / Fast Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM









Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
