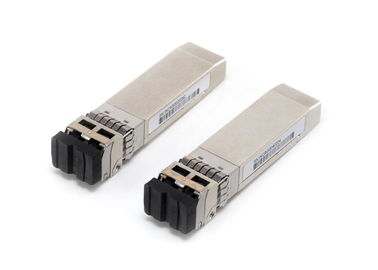

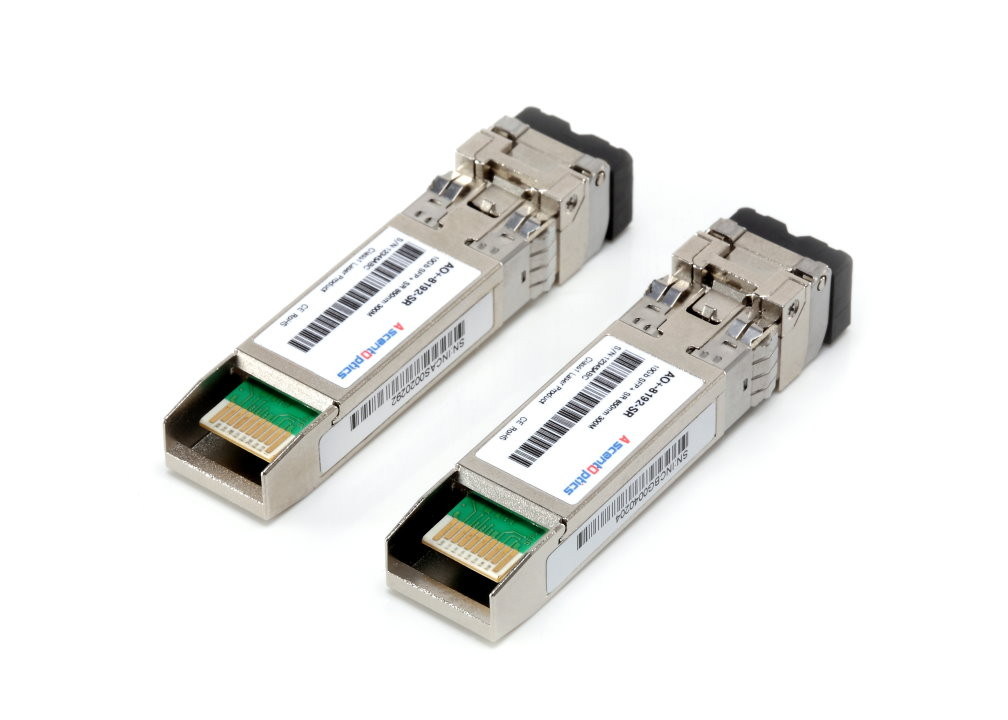

H3C Single Mode Optical Transceiver Module SFP-XG-LX-SM1310

H3C Single Mode Optical Transceiver Module SFP-XG-LX-SM1310

  • H3C Single Mode Optical Transceiver Module SFP-XG-LX-SM1310
  • H3C Single Mode Optical Transceiver Module SFP-XG-LX-SM1310
H3C Single Mode Optical Transceiver Module SFP-XG-LX-SM1310
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: SFP-XG-LX-SM1310-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: Optical Transceiver Module Distance: 10KM
Wavelenght: 1310nm DDM/DOM: YES
Connector: LC Application: Datacom 10G Ethernet/ 2x 4x 8x FC
High Light:

allied telesis transceiver

,

ethernet optical transceiver



H3C Single Mode Optical Transceiver Module SFP-XG-LX-SM1310



H3C 10GBASE-LR SFP+ Module, Single Mode (1310nm, 10km, LC)



The AscentOptics 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link



Features:
  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
  • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
  • 1310nm DFB  transmitter, PIN photo-detector
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
  • operating case temperature: 0 to 70 °C
  • ll-metal housing for superior EMI performance
  • Low power consumption
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  • RoHS compliant



Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes



Specifications:



P/N

SFP-XG-LX-SM1310-A

Datarate

10G/ps

Wavelength

1310nm

Distance

10KM

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 2x 4x 8x FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM



H3C 10G SFP+

SFP-XG-SX-MM850-A SFP-XG-SX-MM850-A-A 10GBASE-SR SFP+   850nm MMF  300M
SFP-XG-SX-MM850-B SFP-XG-SX-MM850-B-A 10GBASE-SR SFP+   850nm MMF  300M  Different sensitivity
SFP-XG-LX220-MM1310 SFP-XG-LX220-MM1310-A 10GBASE-LRM SFP+  1310nm  MMF 220M
SFP-XG-LX-SM1310 SFP-XG-LX-SM1310-A 10GBASE-LR SFP+  1310nm  SMF 10km
SFP-XG-LH40-SM1550 SFP-XG-LH40-SM1550-A 10GBASE-ER SFP+  1550nm  SMF 40KM



Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
