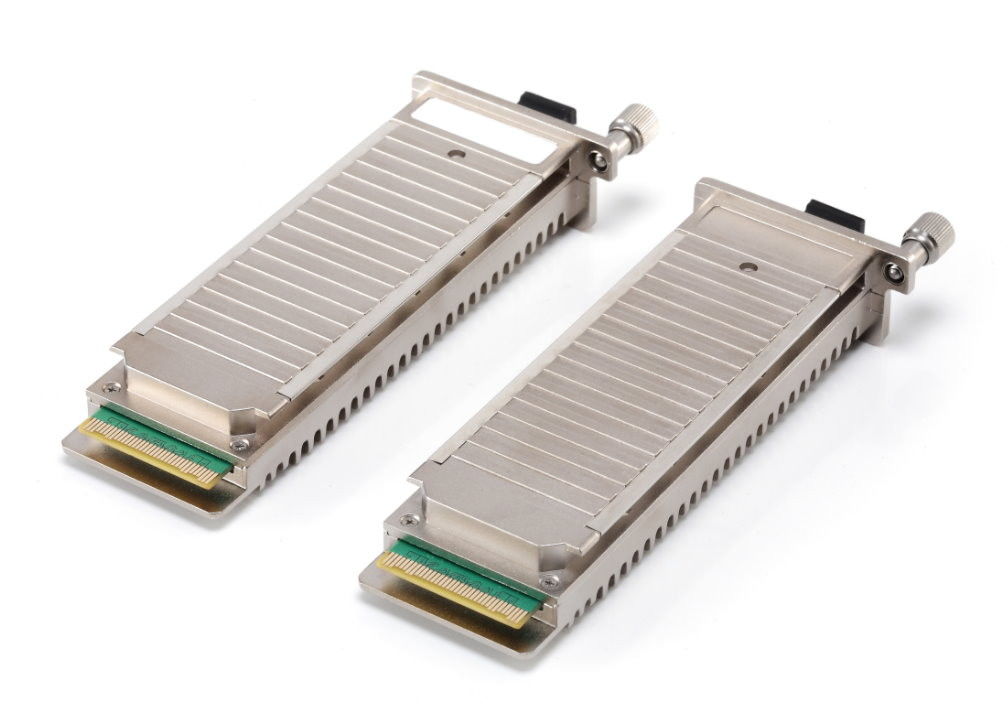

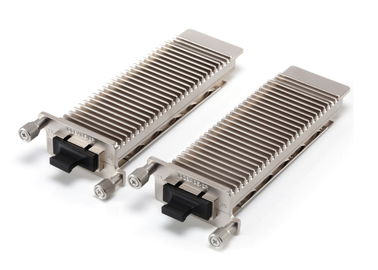

Extreme Compatible 10G Xenpak Module Multi-mode Transceiver OEM

Extreme Compatible 10G Xenpak Module Multi-mode Transceiver OEM

  • Extreme Compatible 10G Xenpak Module Multi-mode Transceiver OEM
  • Extreme Compatible 10G Xenpak Module Multi-mode Transceiver OEM
Extreme Compatible 10G Xenpak Module Multi-mode Transceiver OEM
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: 10114-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: 10G Xenpak Module, Optical Transceiver Module Datarate: 10G
Wavelength: 1310nm Distance: 300M/10KM
Application: 10GE Ethernet,10GE Core-routers,10GE Storage Ect. Form Factor: XENPAK
High Light:

10g xenpak transceiver

,

cisco xenpak


Extreme Compatible 10G Xenpak Module Multi-mode Transceiver OEM



10 Gigabit Ethernet WWDM XENPAK Transceiver, 1310 nm, up to 300 m on multi-mode fiber and up to 10 km on single-mode fiber, SC connector .
Supports 10GBASE Ethernet.Hot-swappable input/output device plugs into an Ethernet XENPAK port of a switch or router to link the port with the network.Provides flexibility of interface choice.Supports "pay-as-you-populate" model.Interoperable with respective 10-Gigabit X2, XFP and SFP+ modules on the same link




Features



  • Compatible with XENPAK MSA Rev.3.0
  • Support of IEEE802.3ae 10GBASE-LR
  • Transmission Distance up to 10km(SMF)
  • Uncooled directly modulated 1310nm DFB Laser
  • Temperature Range 0 to 70°C
  • Adaptable Power Supply (APS:+1.2V)
  • SC duplex Optical connector
  • Hot pluggable 70-pin connector with XAUI electrical interface
  • Management and control via MDIO 2-wire interface
  • Compatible with RoHS



Applications



  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Other 10Gbps Ethernet Transmission System



Specifications:


P/N

10114-A

Datarate

10G

Distance

300M/10KM

Wavelength

1310nm

Transmitter

DFB

Receiver

PIN

Media

MMF/SMF

DDM/DOM

YES

Connector

SC

Application

Datacom 10G Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM




Extreme 10G Xenpak


XENPAK
10110 10110-A 10 Gigabit Ethernet XENPAK Transceiver, SR, 850 nm, MMF, 300 m range
10111 10111-A 10 Gigabit Ethernet XENPAK Transceiver, LR, 1310 nm, SMF, 10 Km range
10112 10112-A 10 Gigabit Ethernet XENPAK Transceiver, ER, 1550 nm, SMF, 40 Km range
10113 10113-A 10GBASE-ZR XENPAK 1550nm 80km Optical Transceiver
10114 10114-A LX4 XENPAK 10 Gigabit Ethernet XENPAK, 1310nm WWDM, MMF 300m and SMF 10km, SC
10116E  10116E-A LW XENPAK WAN PHY XENPAK, 10GBASE-LW, 1310nm, up to 10 KM over SMF, SC, RoHS-5





Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
