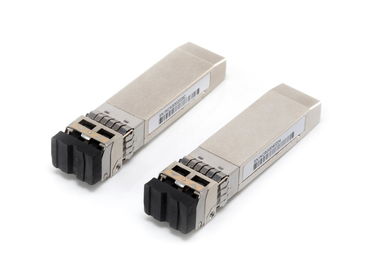

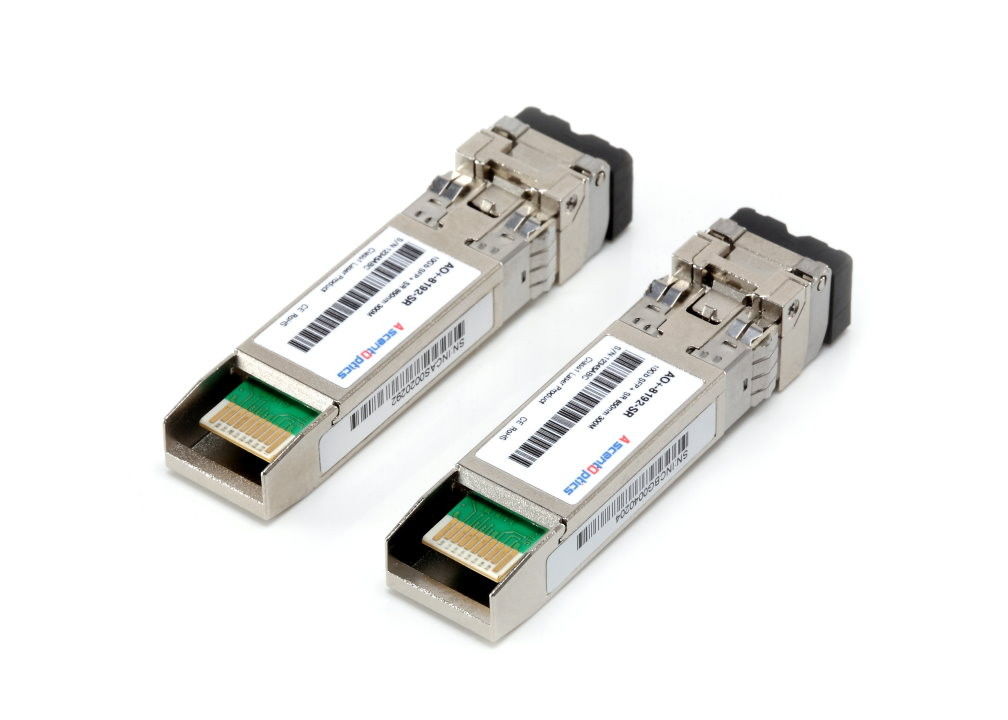

Custom Optical Multi-mode Transceiver Module SFP-XG-SX-MM850-A

Custom Optical Multi-mode Transceiver Module SFP-XG-SX-MM850-A

  • Custom Optical Multi-mode Transceiver Module SFP-XG-SX-MM850-A
  • Custom Optical Multi-mode Transceiver Module SFP-XG-SX-MM850-A
Custom Optical Multi-mode Transceiver Module SFP-XG-SX-MM850-A
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: SFP-XG-SX-MM850-A-A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: Optical Transceiver Module Distance: 300M
Wavelenght: 850nm DDM/DOM: YES
Connector: LC Application: Datacom 10G Ethernet/ 2x 4x 8x FC
High Light:

allied telesis transceiver

,

ethernet optical transceiver


Custom Optical Multi-mode Transceiver Module SFP-XG-SX-MM850-A



H3C 10GBASE-SR SFP+ Module, Multi-Mode (850nm, 300m, LC)

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link


Features

  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR

  • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

  • 850nm VCSEL transmitter, PIN photo-detector

  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

  •  Operating case temperature: 0 to 70°C

  •  ll-metal housing for superior EMI performance

  •  Low power consumption

  • Advanced firmware allow customer system encryption information to be stored in transceiver

  •  Cost effective SFP+ solution, enables higher port densities and greater bandwidth

  • RoHS compliant


Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes



Specifications:



P/N

SFP-XG-SX-MM850-A-A

Datarate

10G/ps

Wavelength

850nm

Distance

300M

Transmitter

VSCEL

Receiver

PIN

Media

MMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 2x 4x 8x FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM



H3C 10G SFP+

SFP-XG-SX-MM850-A SFP-XG-SX-MM850-A-A 10GBASE-SR SFP+   850nm MMF  300M
SFP-XG-SX-MM850-B SFP-XG-SX-MM850-B-A 10GBASE-SR SFP+   850nm MMF  300M  Different sensitivity
SFP-XG-LX220-MM1310 SFP-XG-LX220-MM1310-A 10GBASE-LRM SFP+  1310nm  MMF 220M
SFP-XG-LX-SM1310 SFP-XG-LX-SM1310-A 10GBASE-LR SFP+  1310nm  SMF 10km
SFP-XG-LH40-SM1550 SFP-XG-LH40-SM1550-A 10GBASE-ER SFP+  1550nm  SMF 40KM



Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
