| Product Name: | SFP+ Optical Transceiver | Datarate: | 10.3G/ps |
|---|---|---|---|
| Distance: | 10KM | Wavelength: | 1310nm |
| Application: | 10 Gigabit Ethernet | DDM/DOM: | YES |
| Highlight: | sfp fiber optic transceiver,sfp transceiver module |
||

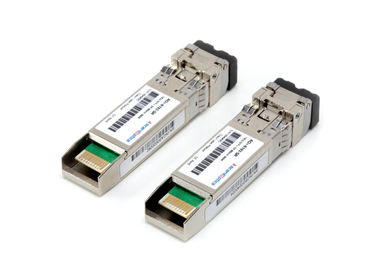

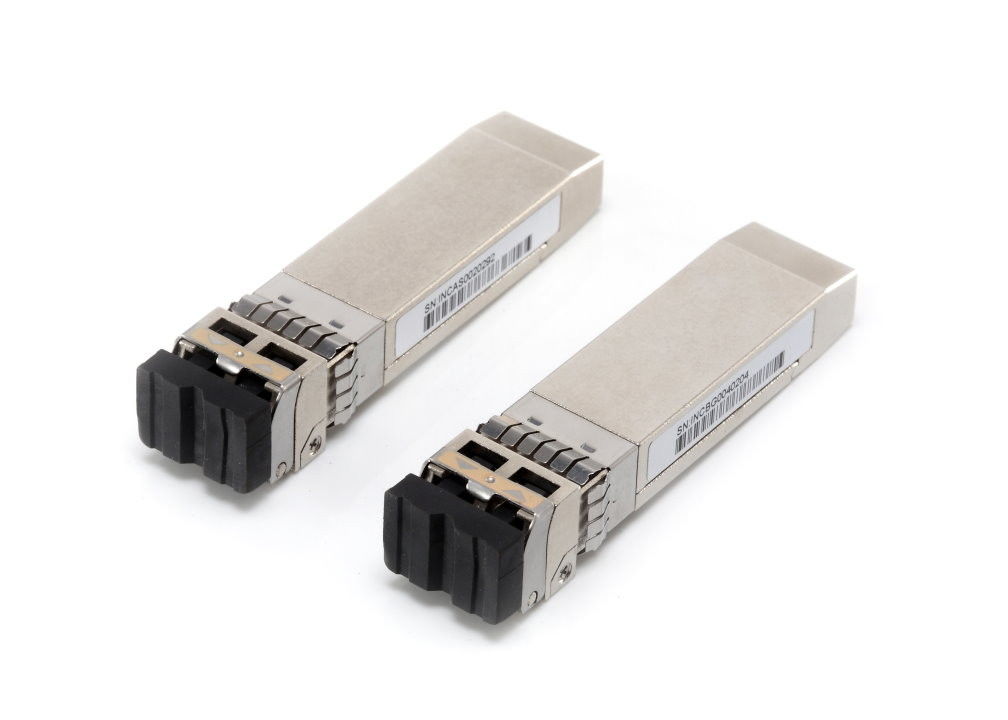

Alcatel-lucent 10GBASE-LR SFP+ Optical Transceiver Module SFP-10G-LR-AL
Specifications:
|
P/N |
SFP-10G-LR-AL-A |
|
Datarate |
10.3G/ps |
|
Distance |
10KM |
|
Wavelength |
1310nm |
|
Transmitter |
DFB |
|
Receiver |
PIN |
|
Media |
SMF |
|
DDM/DOM |
YES |
|
Connector |
LC |
|
Application |
10 Gigabit Ethernet |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
Neuter, OEM |
Alcatel-lucent 10GBASE-LR SFP+ transceiver module for SMF, 1310-nm wavelength, 10km, LC duplex connector
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Features:
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
1310nm DFB transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
operating case temperature: 0 to 70 °C
ll-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS compliant
Applications
Alcatel-lucent SFP+
| 10G SFP+ | ||
| SFP-10G-SR-AL | SFP-10G-SR-AL-A | 10GBASE-SR SFP+ 850nm MMF 300M |
| SFP-10G-LR-AL | SFP-10G-LR-AL-A | SFP+ 10GBASE-LR；LC；1310nm；SMF up to 10km |
| SFP-10G-LRM-AL | SFP-10G-LRM-AL-A | SFP+ 10GBASE-LRM；LC；1310nm；MMF up to 220m |
| SFP-10G-ER-AL | SFP-10G-ER-AL-A | SFP+ 10GBASE-ER；LC；1550nm；SMF up to 40km |
| iSFP-10G-SR | iSFP-10G-SR-A | 10GBASE-SR SFP+ 850nm MMF 300M |
| iSFP-10G-LR | iSFP-10G-LR-A | SFP+ 10GBASE-LR；LC；1310nm；SMF up to 10km |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
