Product Name: | SFP+ Optical Transceiver | Datarate: | 10G/ps |
---|---|---|---|
Distance: | 220M | Wavelength: | 1310nm |
Application: | Datacom 10G Ethernet/ 2x 4x 8x FC | DDM/DOM: | YES |
High Light: | sfp fiber optic transceiver,sfp transceiver module |

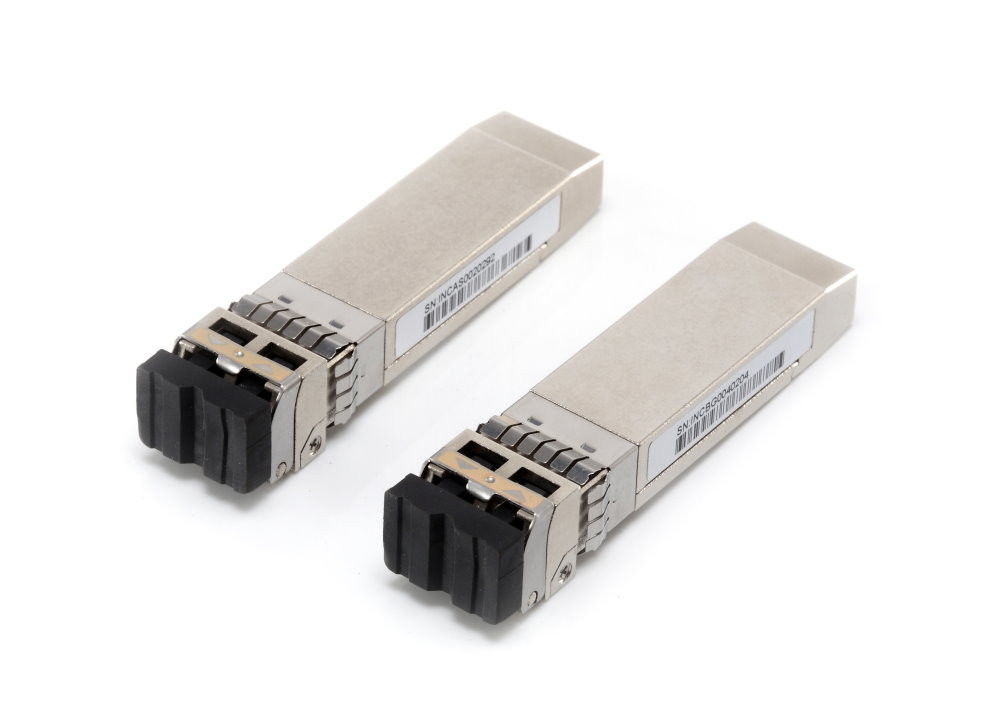

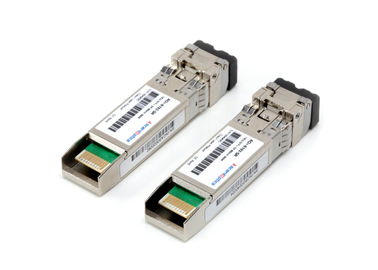

AA1403017-E6 SFP+ Optical Transceiver 802.3aq Avaya Compatible
Avaya 10GBASE-LRM SFP+ Module, Multi-mode, 1310nm, 220m, Duplex LC Connector
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Features
10Gb/s serial optical interface compliant to 802.3aq 10GBASE-LRM
lectrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
1310nm FP transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Operating case temperature: -40 to 85 °C
ll-metal housing for superior EMI performance
Low power consumption
advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS compliant
Applications
Specifications:
P/N |
AA1403017-E6-A |
Datarate |
10G/ps |
Wavelength |
1310nm |
Distance |
220M |
Transmitter |
DFB |
Receiver |
PIN |
Media |
MMF |
DDM/DOM |
YES |
Connector |
LC |
Application |
Datacom 10G Ethernet/ 2x 4x 8x FC |
Operating Temperature |
0℃~ +70℃ |
Voltage Supply |
3.3V |
Certification |
CE/FCC/RoHS/TUV/UL |
Brand |
Neuter, OEM |
Avaya SFP+
SFP+ | ||
AA1403015-E6 | AA1403015-E6-A | 10GBASE-SR SFP+ 850nm MMF 300M |
AA1403011-E6 | AA1403011-E6-A | SFP+ 10GBASE-LR;LC;1310nm;SMF up to 10km |
AA1403017-E6 | AA1403017-E6-A | SFP+ 10GBASE-LRM;LC;1310nm;MMF up to 220m |
AA1403013-E6 | AA1403013-E6-A |
SFP+ 10GBASE-ER;LC;1550nm;SMF up to 40km |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
