| Place of Origin: | Shenzhen,China |
| Brand Name: | AscentOptics/Neuter, OEM |
| Certification: | CE,FCC,RoHS |
| Model Number: | AVP3G5511-SDI20 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | 10 or 20PCS /Plastic tray, 1PC/Gift box |
| Delivery Time: | Within 1-3 working days after PO confirmed |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs/Month |
| Product Name: | Video SFP Transceiver | Sensitivity(dbm): | -18 |
|---|---|---|---|
| Datarate: | 50-3000 (Mb/s) | Application: | 3G Video System |
| Connector: | LC | Distance: | 20Km |
| High Light: | allied telesis transceiver,sfp gigabit ethernet |
||
Specification:
|
P/N |
AVP3G5511-SDI20 |
|
Datarate |
50~3000 (Mb/s) |
|
Number of optical input |
1 |
|
Number of optical output |
1 |
|
Typical powervalue (dbm) |
-5~0 |
|
Sensitivity(dbm) |
-18 |
|
Estimated reach @3Gb/s (km) |
20Km |
|
Connector |
LC |
|
Application |
3G Video System |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
AscentOptics/Neuter, OEM |
|
Standards |
SMPTE 424M 3 Gbps SDI SMPTE 292M HD-SDI/ SMPTE 348M HD-SDTI SMPTE 259M SD-SDI/ SMPTE 308M SD-SDTI |

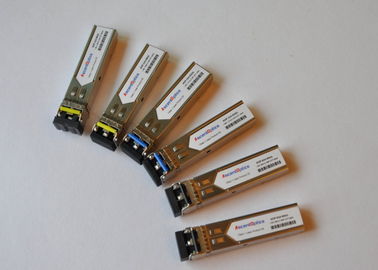

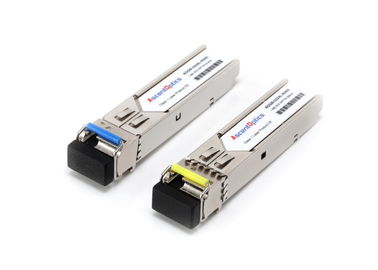

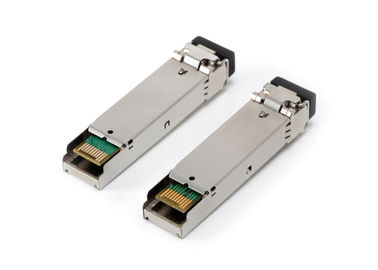

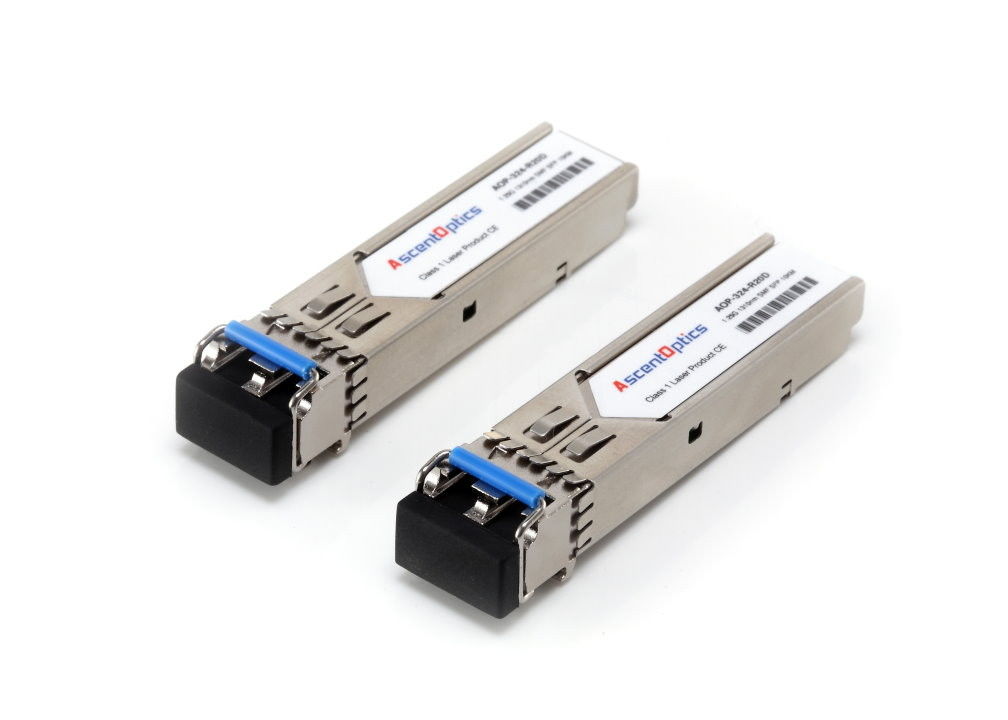

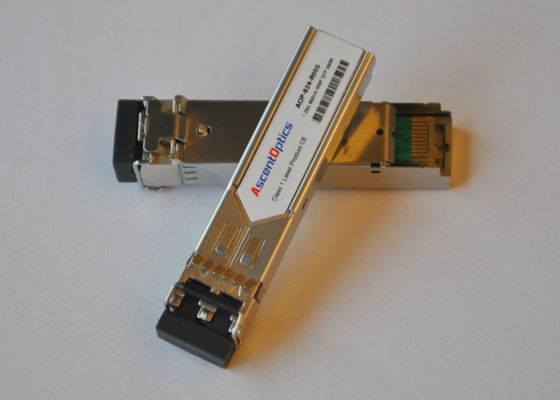

SMPTE video SFP 3G 1550nm DFB/PIN transceiver 3G/HD-SDI/SD-SDI
Description:
1. SMPTE 424M/297M compliant
2. Robust Error free transmission of signals from 50Mbps to 3.0Gbps
3. Supports video pathological patterns for 3G/HD-SDI/SD-SDI
4. PIN defination is compatible with MSA
5. SFP Package.Hot-pluggable
6. Metal enclosure for lower EMI
7. +3.3V single power supply.
8. Digital diagnostics and control via I²C interface, including:
1)Monitoring laser bias current, average output power, supply voltage and temperature
2)Alarm reporting when transmitter is at fault
3)Module ID polling
9. Compliant ROHS and lead free
Applications
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
