| Place of Origin: | Shenzhen,China |
| Brand Name: | AscentOptics/Neuter, OEM |
| Certification: | CE/FCC/RoHS/TUV/UL |
| Model Number: | AOP-524-R120D |
| Minimum Order Quantity: | 1PCS |
|---|---|

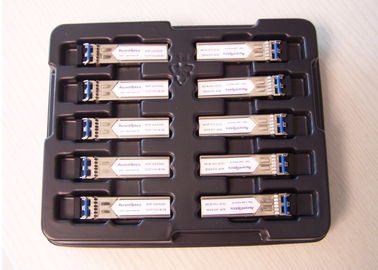

| Packaging Details: | 10 or 20PCS /Plastic tray, 1PC/Gift box |
| Delivery Time: | Within 1-3 working days after PO confirmed |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs/Month |
| Product Name: | SFP Optical Transceiver | Datarate: | 1.25Gb/s |
|---|---|---|---|
| Wavelength: | 1550nm | Transmitter: | DFB |
| Connector: | LC | Application: | Gigabit Ethernet |
| High Light: | cisco sfp modules,sfp transceiver module |
||

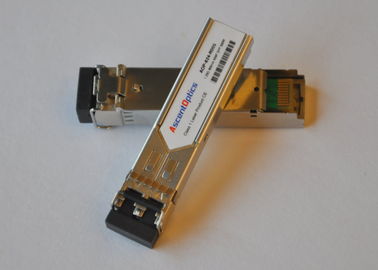

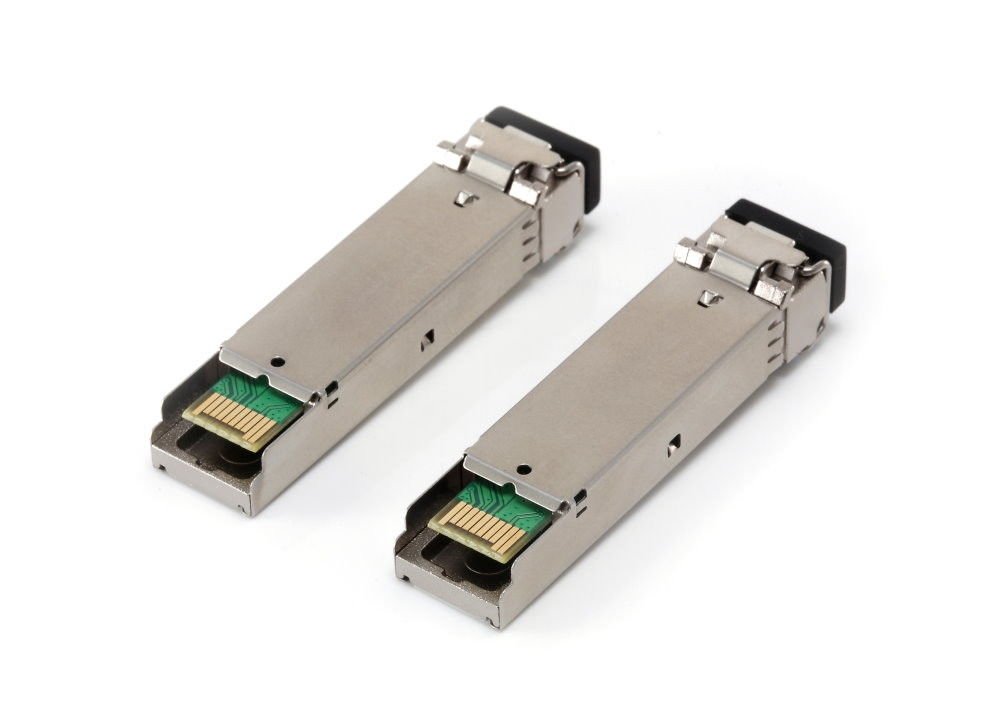

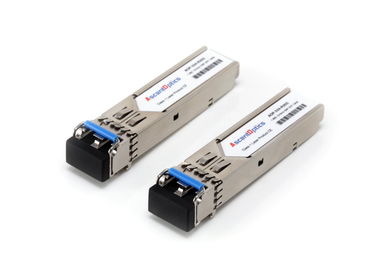

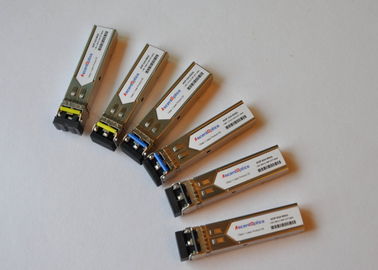

1550nm 120km SFP Fiber Optical Transceiver For Ascent Optics / Neuter
Specification:
|
P/N |
AOP-524-R120D |
|
Datarate |
1.25Gb/s |
|
Wavelenth |
1550nm |
|
Distance |
120KM |
|
Transmitter |
DFB |
|
Receiver |
APD |
|
Media |
SMF |
|
DDM/DOM |
Digital (optional) |
|
Connector |
LC |
|
Application |
Gigabit Ethernet |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
AscentOptics/Neuter, OEM |
SFP 1.25Gb/s 1550nm 120km Single-mode Gigabit Ethernet
Description:
The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network vendors. SFP transceivers are designed to support SONET, Gigabit Ethernet, Fibre Channel, and other communications standards.
The Ascent Optics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
Applications
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
