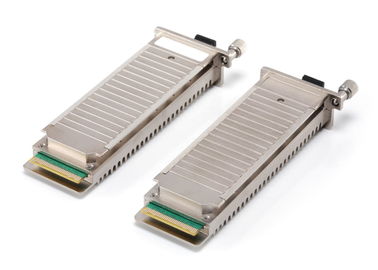

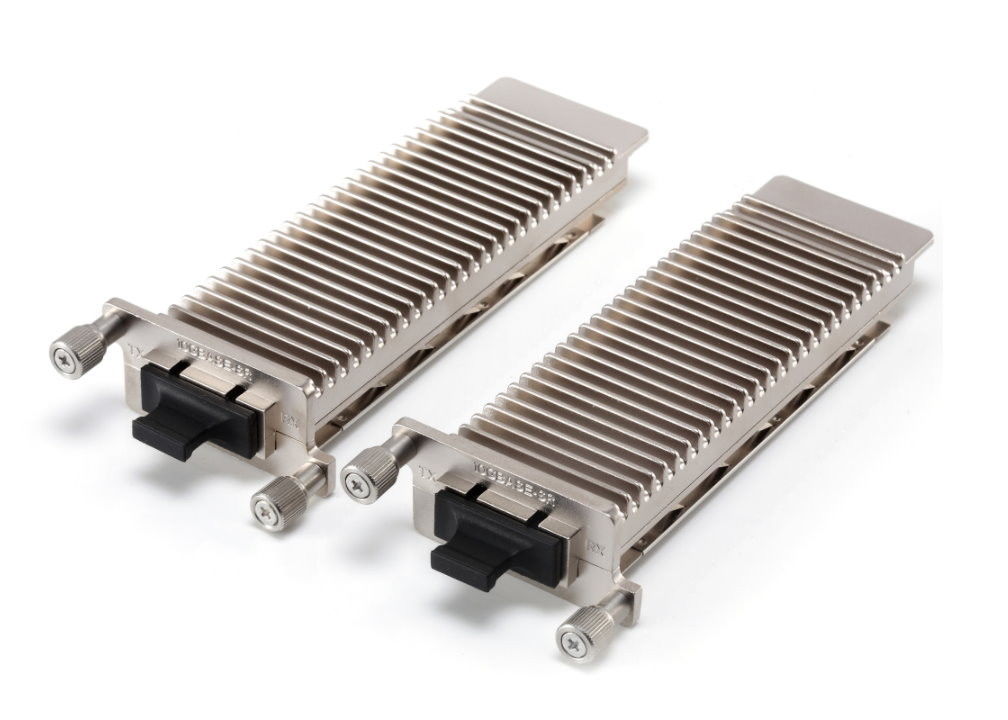

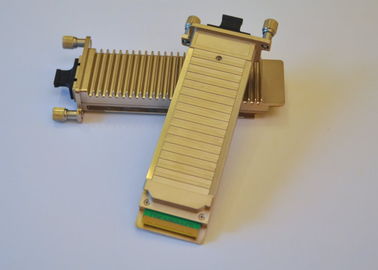

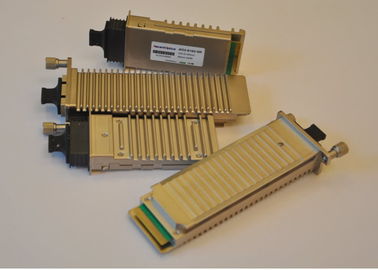

1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet

1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet

  • 1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet
  • 1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet
  • 1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet
  • 1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet
1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: AOK-3192-LW
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: 10G Xenpak Module, Optical Transceiver Module Datarate: 10G
Wavelength: 1310nm Distance: 10KM
Application: 10GE Ethernet,10GE Core-routers,10GE Storage Ect. Form Factor: XENPAK
High Light:

cisco 10g module

,

10g xenpak transceiver



1310nm SMF 10km LW 10G Xenpak Module SC For Datacom 10G Ethernet



Specification:



P/N

AOK-3192-LW

Datarate

10G

Wavelenth

1310nm

Distance

10KM

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

SC

Application

Datacom 10G Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM



Description:



10GBASE XENPAK modules offers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications

Supports 10GBASE Ethernet.Hot-swappable input/output device plugs into an Ethernet XENPAK port of a switch or router to link the port with the network.Provides flexibility of interface choice.Supports "pay-as-you-populate" model.Interoperable with respective 10-Gigabit X2, XFP and SFP+ modules on the same link



Features

  • Compatible with XENPAK MSA Rev.3.0
  • Support of IEEE802.3ae 10GBASE-LR
  • Transmission Distance up to 10km(SMF)
  • Uncooled directly modulated 1310nm DFB Laser
  • Temperature Range 0 to 70°C
  • Adaptable Power Supply (APS:+1.2V)
  • SC duplex Optical connector
  • Hot pluggable 70-pin connector with XAUI electrical interface
  • Management and control via MDIO 2-wire interface
  • Compatible with RoHS



Applications

  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Other 10Gbps Ethernet Transmission System



AscentOptics 10G Xenpak

P/N Data Rate Distance Wavelength LD PD DDM Media
AOK-8192-SR 10.3 300M 850nm VESCEL PIN Y MM
AOK-3192-LR 10.3 10KM 1310nm DFB PIN Y SM
AOK-3192-LW 9.95 10KM 1310nm DFB PIN Y SM
AOK-3192-LRM 9.95 220M 1310nm DFB PIN Y MM
AOK-5192-ER 10.3 40KM 1550nm DFB PIN Y SM
AOK-5192-ZR 10.3 80KM 1550nm DFB APD Y SM
AOK-CXXXX-R40 10.3 40KM CWDM XXXXnm DFB PIN Y SM
AOK-CXXXX-R80 10.3 80KM CWDM XXXXnm DFB APD Y SM
AOK-DXX-R40 10.3 40KM DWDM CHXX DFB PIN Y SM
AOK-DXX-R80 10.3 80KM DWDM CHXX DFB APD Y SM




Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
