| Product Name: | SFP Optical Transceiver | Datarate: | 2.488Gb/s |
|---|---|---|---|
| Wavelength: | 1310nm | Transmitter: | DFB |
| Connector: | LC | Application: | OC-48 / STM-16 |
| Highlight: | cisco sfp modules,sfp transceiver module |
||

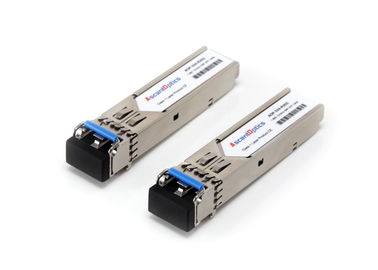

1310nm 15km SONET/ SDH SFP Optical Transceiver 2.488G For Fiber Channel
Specification:
|
P/N |
AOP-348-R15(D) |
|
Datarate |
2.488Gb/s |
|
Wavelenth |
1310nm |
|
Distance |
15KM |
|
Transmitter |
DFB |
|
Receiver |
PIN |
|
Media |
SMF |
|
DDM/DOM |
Digital (optional) |
|
Connector |
LC |
|
Application |
OC-48 / STM-16 |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
AscentOptics/Neuter, OEM |
SFP 2.5Gb/s 1310nm 15km Single-mode OC-48 /STM-16
Description:

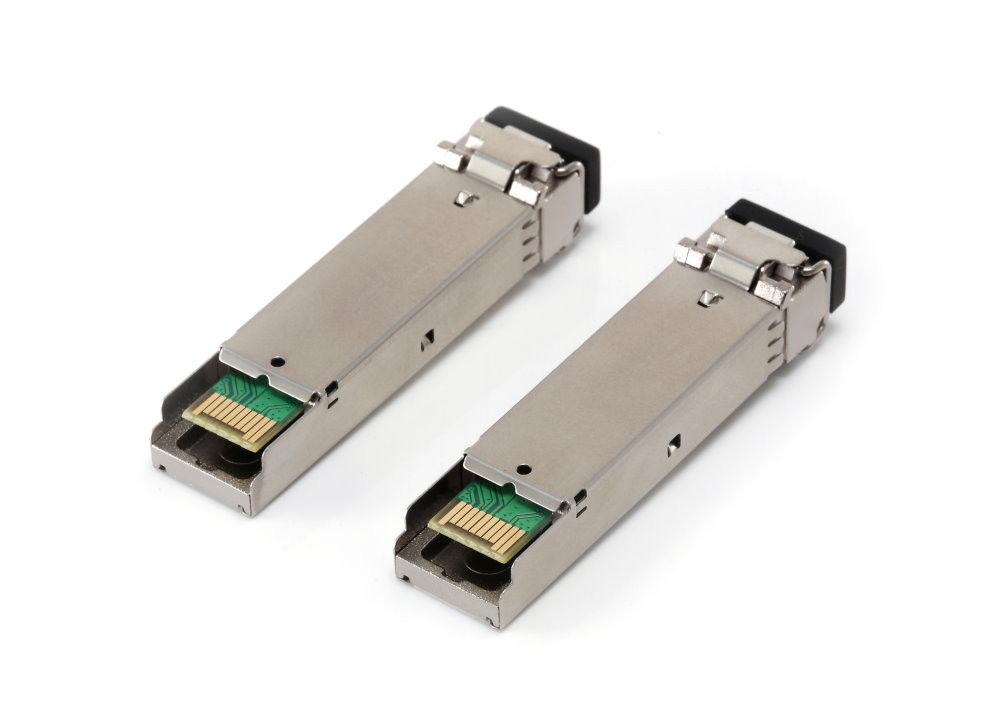

The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network vendors. SFP transceivers are designed to support SONET, Gigabit Ethernet, Fibre Channel, and other communications standards.
The AscentOptics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
Applications
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
