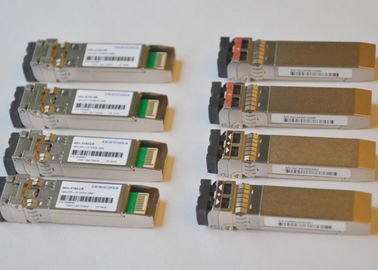

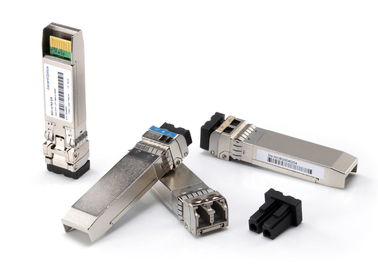

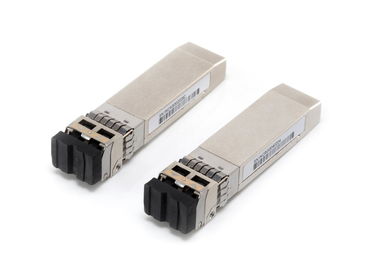

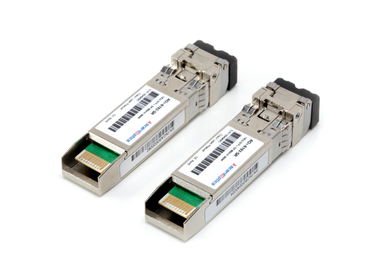

10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet

10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet

  • 10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet
  • 10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet
  • 10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet
  • 10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet
  • 10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet
10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: AO+-8192-SR
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: SFP + Optical Transceiver Datarate: 10G/ps
Distance: 300M Wavelength: 850nm
Application: 10 Gigabit Ethernet DDM/DOM: YES
High Light:

optical transceiver sfp

,

sfp transceiver module


10gbase-sr SFP+ Optical Transceiver LC For Datacom 10G Ethernet



Specification:



P/N

AO+-8192-SR

Datarate

10G/ps

Wavelenth

850nm

Distance

300M

Transmitter

VSCEL

Receiver

PIN

Media

MMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 2x 4x 8x FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM



10G SFP+ SR 850nm 300m Multi-mode Datacom 10G Ethernet/ 2x 4x 8x FC



Description:



The AscentOptics 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link



Features

  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR

  • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

  • 850nm VCSEL transmitter, PIN photo-detector

  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

  •  Operating case temperature: 0 to 70°C

  •  ll-metal housing for superior EMI performance

  •  Low power consumption

  • Advanced firmware allow customer system encryption information to be stored in transceiver

  •  Cost effective SFP+ solution, enables higher port densities and greater bandwidth

  • RoHS compliant



Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes

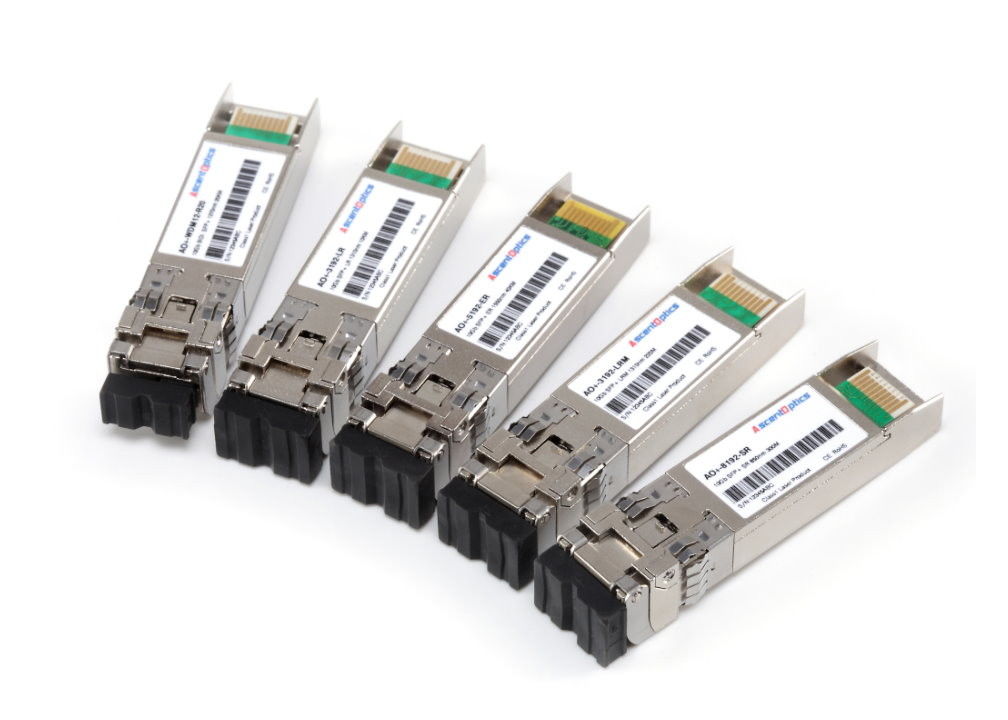

AscentOptics 10G SFP+

P/N Data Rate Distance Wavelength Media Connector
AO+-8192-SR 10G/ps 300M 850nm MM LC
AO+-3192-LR 10G/ps 10KM 1310nm SM LC
AO+-3192-LRM 10G/ps 220M 1310nm MM LC
AO+-5192-ER 10G/ps 40KM 1550nm SM LC
AO+-5192-ZR 10G/ps 80KM 1550nm SM LC
AO+-CXXXX-R40 10G/ps 40KM CWDM XXXXnm SM LC
AO+-CXXXX-R80 10G/ps 80KM CWDM XXXXnm SM LC
AO+-DXX-R40 10G/ps 40KM DWDM CHXX SM LC
AO+-DXX-R80 10G/ps 80KM DWDM CHXX SM LC
AO+-DTXX-R80 10G/ps 80KM DWDM tunable CHXX SM LC




Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
