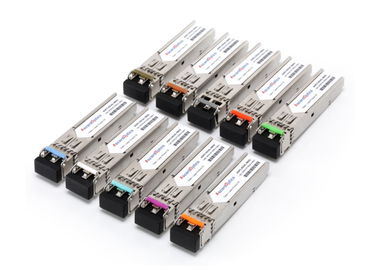

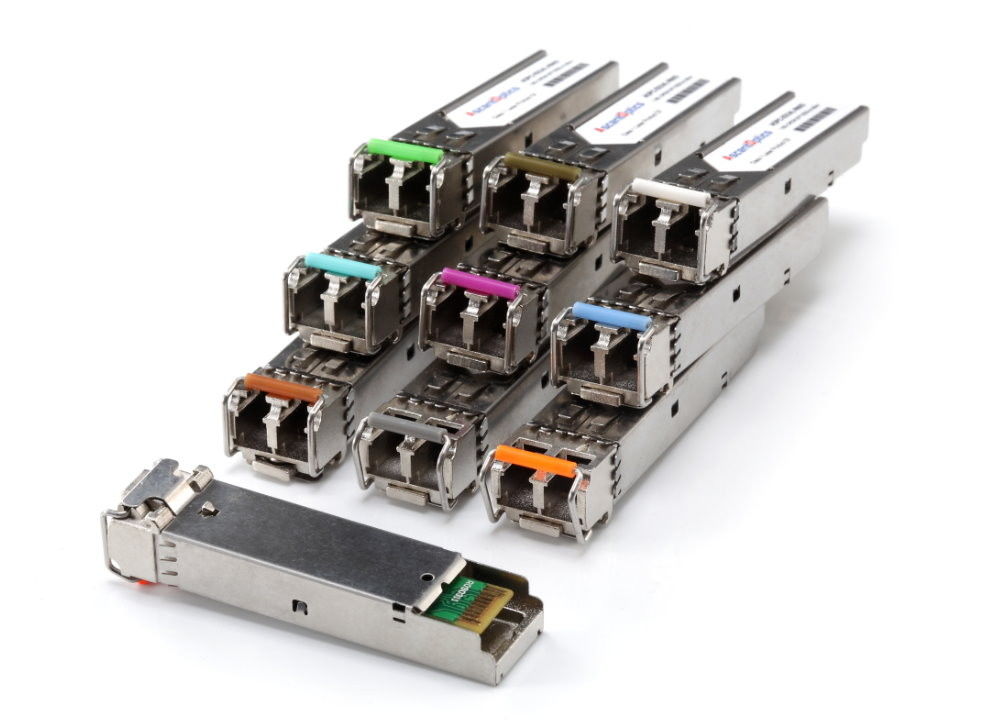

1000BASE - CWDM SFP Fiber Transceiver For Gigabit Ethernet And 1G / 2G FC

1000BASE - CWDM SFP Fiber Transceiver For Gigabit Ethernet And 1G / 2G FC

  • 1000BASE - CWDM SFP Fiber Transceiver For Gigabit Ethernet And 1G / 2G FC
  • 1000BASE - CWDM SFP Fiber Transceiver For Gigabit Ethernet And 1G / 2G FC
  • 1000BASE - CWDM SFP Fiber Transceiver For Gigabit Ethernet And 1G / 2G FC
1000BASE - CWDM SFP Fiber Transceiver For Gigabit Ethernet And 1G / 2G FC
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: AOPC-XX24-R40(D)
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: SFP Optical Transceiver Datarate: 1.25Gb/s
Wavelength: CWDM 1270-1610nm Transmitter: DFB
Connector: LC Application: Gigabit Ethernet/FC
High Light:

sfp transceiver module

,

fiber optic sfp module



1000BASE - CWDM SFP Fiber Transceiver For Gigabit Ethernet And 1G / 2G FC




Specification:



P/N

AOPC-XX24-R40(D)

Datarate

1.25Gb/s

Wavelenth

CWDM  1270-1610nm

Distance

40KM

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

Digital (optional)

Connector

LC

Application

Gigabit Ethernet/FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM



CWDM SFP 1.25Gb/s 1270-1610nm  wavelenth 80km Single-mode Gigabit Ethernet



Description:

The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network vendors. SFP transceivers are designed to support SONET, Gigabit Ethernet, Fibre Channel, and other communications standards.



The AscentOptics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.







Applications



  • Gigabit Ethernet/Fast Ethenet
  • Fiber Channel
  • SDH/SONET/ATM
  • Switch to Switch interface
  • Router/Server interface
  • Other optical transmission systems







Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
