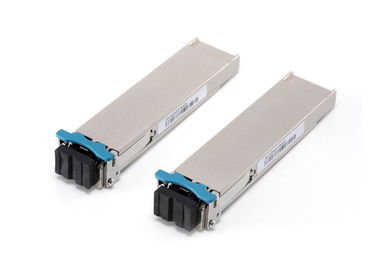

ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64

ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64

  • ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64
  • ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64
  • ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64
  • ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64
  • ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64
ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: AOX-3192-LR
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: 10G XFP Module Datarate: 10G/ps
Distance: 80KM Wavelength: 1550nm
DDM/DOM: YES Application: Datecom 10G Ethernet/ 10x FC Telcom OC192/STM-64
High Light:

cisco sfp modules

,

10gb ethernet switch


ZR 1550nm 80Km 10G XFP Module Single Mode 10x FC Telcom OC192 / STM-64


Specification:



P/N

AOX-5192-ZR

Datarate

10G/ps

Wavelenth

1550nm

Distance

80KM

Transmitter

DFB

Receiver

APD

Media

SMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM



Description:

XFP modules are hot-swappable and protocol-independent. They typically operate at near-infrared wavelengths (colors) of 850 nm, 1310 nm or 1550 nm. Principal applications include 10 Gigabit Ethernet, 10 Gbit/s Fibre Channel, synchronous optical networking (SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s Optical Transport Network (OTN) OTU-2, and parallel optics links. They can operate over a single wavelength or use dense wavelength-division multiplexing techniques. They include digital diagnostics that provide management that were added to the SFF-8472 standard.  XFP modules use an LC fiber connector type to achieve high density.

The AscentOptics 10G XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.



Features

  • 10Gb/s serial optical interface compliant to 802.3ae, 10GBASE ZR/ZW
  • 1550nm cooled EML transmitter with TEC, APD photo-detector
  • XFP Mechanical interface with bail latch and hot pluggable
  • XFI High Speed Electrical Interface
  • 2-wire interface for management and digital diagnostic monitor
  • Operating case temperature: 0 to 70 °C
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • RoHS compliant
  • No reference clock needed



Applications

  • 10GE Ethernet switches and routers
  • 10GE Storage
  • SONET(OC-192)/SDH(STM64) line card

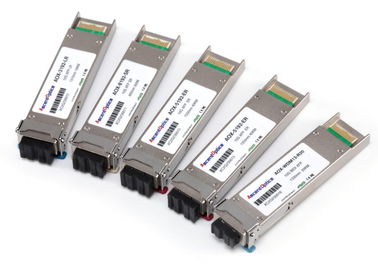

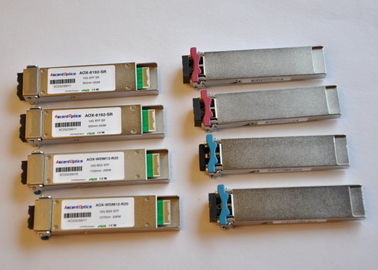

AscentOptics 10G XFP



P/N Data Rate Distance Wavelength Media Connector
AOX-8192-SR 10G/ps 300M 850nm MM LC

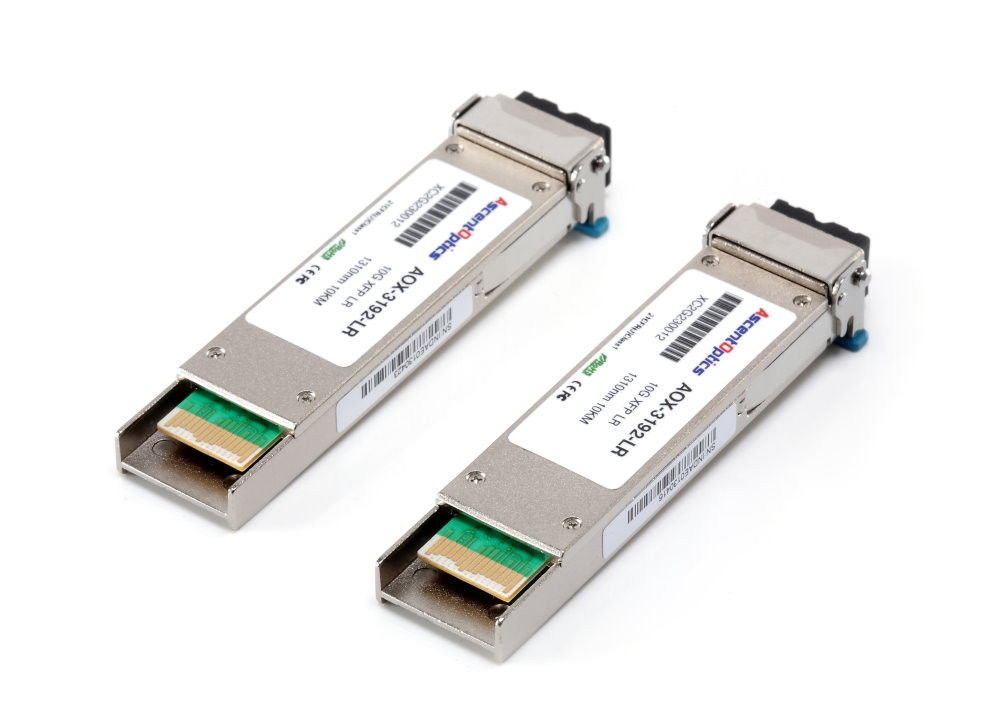

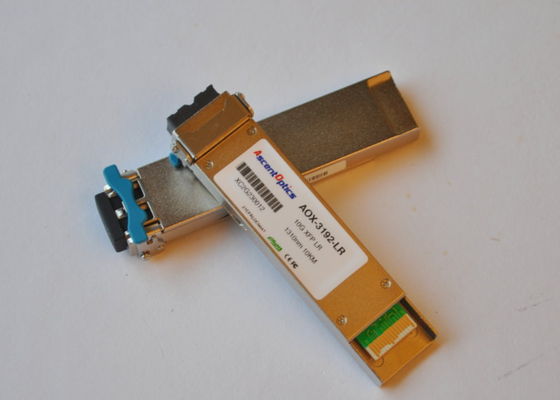

AOX-3192-LR 10G/ps 10KM 1310nm SM LC
AOX-3192-LRM 10G/ps 220M 1310nm MM LC
AOX-5192-ER 10G/ps 40KM 1550nm SM LC
AOX-5192-ZR 10G/ps 80KM 1550nm SM LC
AOX-CXXXX-R40 10G/ps 40KM CWDM XXXXnm SM LC
AOX-CXXXX-R80 10G/ps 80KM CWDM XXXXnm SM LC
AOX-DXX-R40 10G/ps 40KM DWDM CHXX SM LC
AOX-DXX-R80 10G/ps 80KM DWDM CHXX SM LC
AOX-DTXX-R80 10G/ps 80KM DWDM tunable CHXX SM LC



Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
