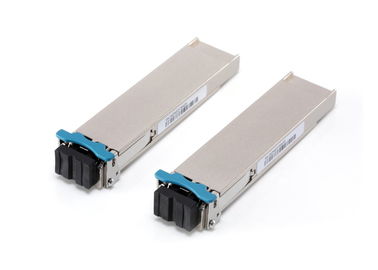

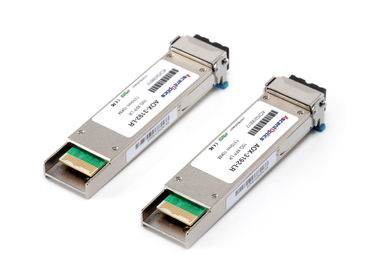

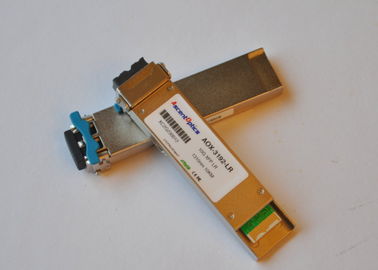

DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet

DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet

  • DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet
  • DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet
  • DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet
  • DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet
  • DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet
DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: AOX-DXX-R80
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: 10G XFP Module Datarate: 10G/ps
Distance: 80KM Wavelength: 850nm
DDM/DOM: YES Application: DWDM 1530.33-1561.42nm
High Light:

sfp transceiver

,

10gb ethernet switch



DWDM 80KM 10G XFP Module SMF LC Connector For Datacom 10G Ethernet


Specification:



P/N

AOX-DXX-R80

Datarate

10G/ps

Wavelenth

DWDM  1530.33-1561.42nm

Distance

80KM

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM




10G  DWDM  XFP (100-GHz ITU grid) 1530.33-1561.42nm  80Km Single-mode  Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64



Description:



XFP modules are hot-swappable and protocol-independent. They typically operate at near-infrared wavelengths (colors) of 850 nm, 1310 nm or 1550 nm. Principal applications include 10 Gigabit Ethernet, 10 Gbit/s Fibre Channel, synchronous optical networking (SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s Optical Transport Network (OTN) OTU-2, and parallel optics links. They can operate over a single wavelength or use dense wavelength-division multiplexing techniques. They include digital diagnostics that provide management that were added to the SFF-8472 standard.  XFP modules use an LC fiber connector type to achieve high density.

The AscentOptics 10G XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.



Features
  • Support 9.95Gb/s to 11.3Gb/s transmission
  • Client side and Line side loopback functions
  • Support 8.5G Fiber Channel Rate
  • XFP MSA compliant form factor connector
  • XFI electrical interface compliant
  • Hot-pluggable XFP footprint
  • 80km EML Transmitter
  • Transmitter supports C-band ITU Grid DWDM 100GHz channels
  • Power Dissipation < 3.5W
  • I2C interface for diagnostic monitoring
  • RoHS 6 Compliant



Applications

  • 10GE Ethernet switches and routers
  • 10GE Storage
  • SONET(OC-192)/SDH(STM64) line card

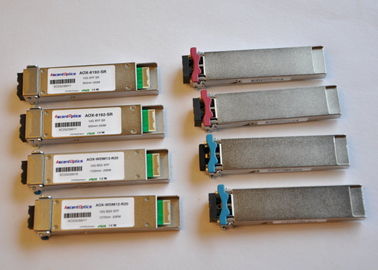

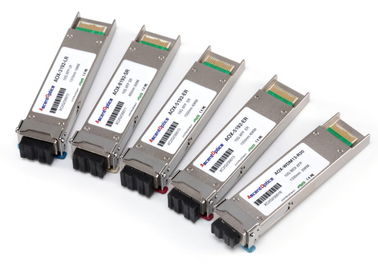

AscentOptics 10G XFP

P/N Data Rate Distance Wavelength Media Connector
AOX-8192-SR 10G/ps 300M 850nm MM LC
AOX-3192-LR 10G/ps 10KM 1310nm SM LC
AOX-3192-LRM 10G/ps 220M 1310nm MM LC
AOX-5192-ER 10G/ps 40KM 1550nm SM LC
AOX-5192-ZR 10G/ps 80KM 1550nm SM LC
AOX-CXXXX-R40 10G/ps 40KM CWDM XXXXnm SM LC
AOX-CXXXX-R80 10G/ps 80KM CWDM XXXXnm SM LC
AOX-DXX-R40 10G/ps 40KM DWDM CHXX SM LC
AOX-DXX-R80 10G/ps 80KM DWDM CHXX SM LC
AOX-DTXX-R80 10G/ps 80KM DWDM tunable CHXX SM LC



Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
