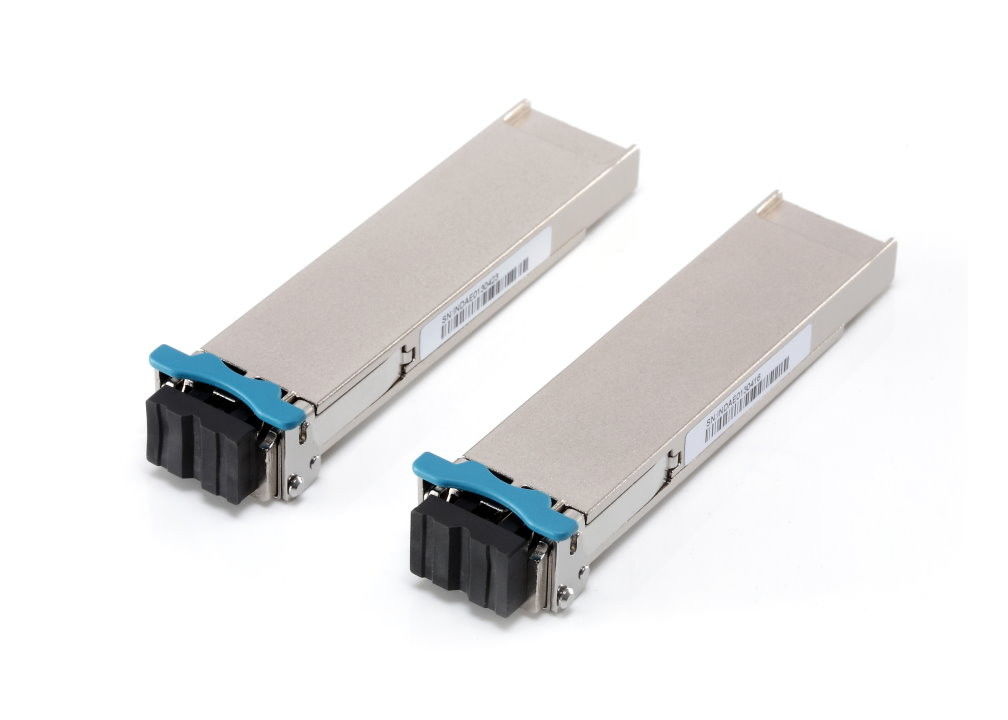

D-link 10-Gigabit 10G XFP Module DEM-421XT 850nm Multi - Mode

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Neuter, OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	DEM-421XT-A

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Get Latest Price
Packaging Details:	10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time:	Within 1-3 working days after PO confirmed
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Product Name:	10G XFP Module	Datarate:	10G/ps
Distance:	300M	Wavelength:	850nm
DDM/DOM:	YES	Application:	Datecom 10G Ethernet/ 10x FC Telcom OC192/STM-64
High Light:	sfp transceiver , 10gb ethernet switch

D-link 10-Gigabit 10G XFP Module DEM-421XT 850nm Multi - Mode

Specifications:

P/N	DEM-421XT-A
Datarate	10G/ps
Wavelength	850nm
Distance	300M
Transmitter	VSCEL
Receiver	PIN
Media	MMF
DDM/DOM	YES
Connector	LC
Application	Datecom 10G Ethernet/ 10x FC Telcom OC192/STM-64
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V
Certification	CE/FCC/RoHS/TUV/UL
Brand	Neuter, OEM

D-Link 10-Gigabit XFP (10GBASE-SR) Transceiver, 850nm Multi-Mode Tranceiver, 300m Max Distance, Duplex LC Connector

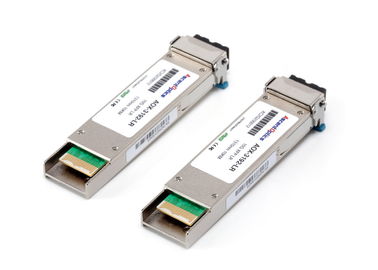

The AscentOptics 10G XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Features

10Gb/s serial optical interface compliant to 802.3ae
850nm VCSEL transmitter and Pin photodiode receiver
XFP Mechanical interface with bail latch and hot pluggable
XFI High Speed Electrical Interface
2-wire interface for management and digital diagnostic monitor
Low Power Consumption <1.25W, Single +3.3V Power supply
Oerating case temperature: 0 to 70 °C
ll-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
RoHS complian
No reference clock needed

Applications

10GE Ethernet switches and routers
10GE Storage
SONET(OC-192)/SDH(STM64) line card

D-link 10G XFP

DEM-421XT	DEM-421XT-A	10GBASE-SR 850nm MMF 300m
DEM-422XT	DEM-422XT-A	10GBASE-LR 1310nm SMF 10km

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

D-link 10-Gigabit 10G XFP Module DEM-421XT 850nm Multi - Mode 0
