Place of Origin: | Shenzhen,China |
Brand Name: | AscentOptics/Neuter, OEM |
Certification: | CE/FCC/RoHS/TUV/UL |
Model Number: | AOX-3192-LR |
Minimum Order Quantity: | 1PCS |
---|---|
Packaging Details: | 10 or 20PCS /Plastic tray, 1PC/Gift box |
Delivery Time: | Within 1-3 working days after PO confirmed |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 50,000pcs/Month |
Product Name: | 10G XFP Module | Datarate: | 10.3G/ps |
---|---|---|---|
Distance: | 10KM | Wavelength: | 1310nm |
DDM/DOM: | YES | Application: | Datecom 10G Ethernet/ 10x FC Telcom OC192/STM-64 |
High Light: | sfp transceiver,10gb ethernet switch |

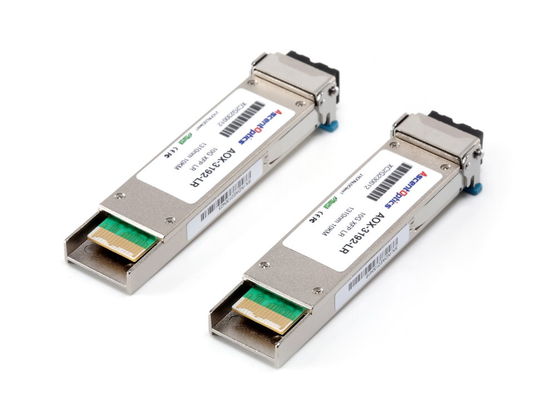

1310nm 10Km 10G XFP Module LR For Single-Mode Datacom 10G Ethernet
Specification:
P/N |
AOX-3192-LR |
Datarate |
10G/ps |
Wavelenth |
1310nm |
Distance |
10KM |
Transmitter |
DFB |
Receiver |
PIN |
Media |
SMF |
DDM/DOM |
YES |
Connector |
LC |
Application |
Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64 |
Operating Temperature |
0℃~ +70℃ |
Voltage Supply |
3.3V |
Certification |
CE/FCC/RoHS/TUV/UL |
Brand |
AscentOptics/Neuter, OEM |
1310nm 10Km 10G XFP Module LR For Single-Mode Datacom 10G Ethernet
Description:
XFP modules are hot-swappable and protocol-independent. They typically operate at near-infrared wavelengths (colors) of 850 nm, 1310 nm or 1550 nm. Principal applications include 10 Gigabit Ethernet, 10 Gbit/s Fibre Channel, synchronous optical networking (SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s Optical Transport Network (OTN) OTU-2, and parallel optics links. They can operate over a single wavelength or use dense wavelength-division multiplexing techniques. They include digital diagnostics that provide management that were added to the SFF-8472 standard. XFP modules use an LC fiber connector type to achieve high density.
The AscentOptics 10G XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Features
Applications
AscentOptics 10G XFP
P/N | Data Rate | Distance | Wavelength | Media | Connector |
AOX-8192-SR | 10G/ps | 300M | 850nm | MM | LC |
AOX-3192-LR | 10G/ps | 10KM | 1310nm | SM | LC |
AOX-3192-LRM | 10G/ps | 220M | 1310nm | MM | LC |
AOX-5192-ER | 10G/ps | 40KM | 1550nm | SM | LC |
AOX-5192-ZR | 10G/ps | 80KM | 1550nm | SM | LC |
AOX-CXXXX-R40 | 10G/ps | 40KM | CWDM XXXXnm | SM | LC |
AOX-CXXXX-R80 | 10G/ps | 80KM | CWDM XXXXnm | SM | LC |
AOX-DXX-R40 | 10G/ps | 40KM | DWDM CHXX | SM | LC |
AOX-DXX-R80 | 10G/ps | 80KM | DWDM CHXX | SM | LC |
AOX-DTXX-R80 | 10G/ps | 80KM | DWDM tunable CHXX | SM |
LC |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
