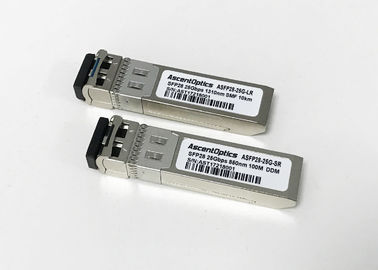

850Nm 100m OM4 LC MMF SFP28 Transceiver / Ethernet Sfp Transceiver SR

850Nm 100m OM4 LC MMF SFP28 Transceiver / Ethernet Sfp Transceiver SR

850Nm 100m OM4 LC MMF SFP28 Transceiver / Ethernet Sfp Transceiver SR

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Neuter, OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: ASFP28-25G-SR

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: SFP28 Transceiver Datarate: 25G
Distance: 100m Wavelength: 850nm
Application: 25 Gigabit Ethernet DDM/DOM: YES



850Nm 100m OM4 LC MMF SFP28 Transceiver / Ethernet Sfp Transceiver SR



Features

  • 25Gb/s serial optical interface
  • 850nm VCSEL transmitter, PIN photo-detector

  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

  • Operating case temperature: 0 to 70°C

  • ll-metal housing for superior EMI performance

  • Low power consumption

  • Advanced firmware allow customer system encryption information to be stored in transceiver

  • Cost effective SFP28 solution, enables higher port densities and greater bandwidth

  • RoHS compliant


850Nm 100m OM4 LC MMF SFP28 Transceiver / Ethernet Sfp Transceiver SR

















Specifications:



P/N

ASFP28-25G-SR

Datarate

25G

Distance

100M

Wavelength

850nm

Transmitter

VCSEL

Receiver

PIN

Media

MMF

DDM/DOM

YES

Connector

LC

Application

25Gigabit Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM



Description:



(1)This Datacomm 100m MMF 850nm SFP28 25G is designed to transmit and receive optical data over 50 μm multimode optical fiber.



(2)The 25G SFP28 SR optical module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.



(3)The Datacomm 25G SFP SR optical module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.





Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
