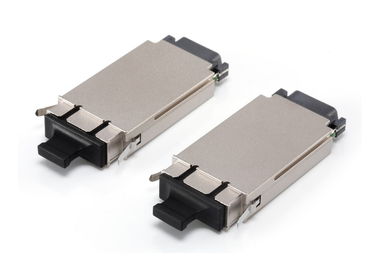

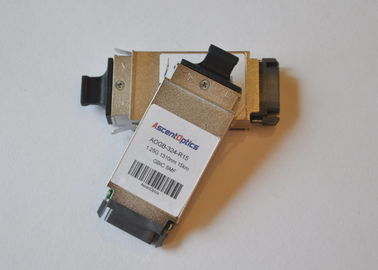

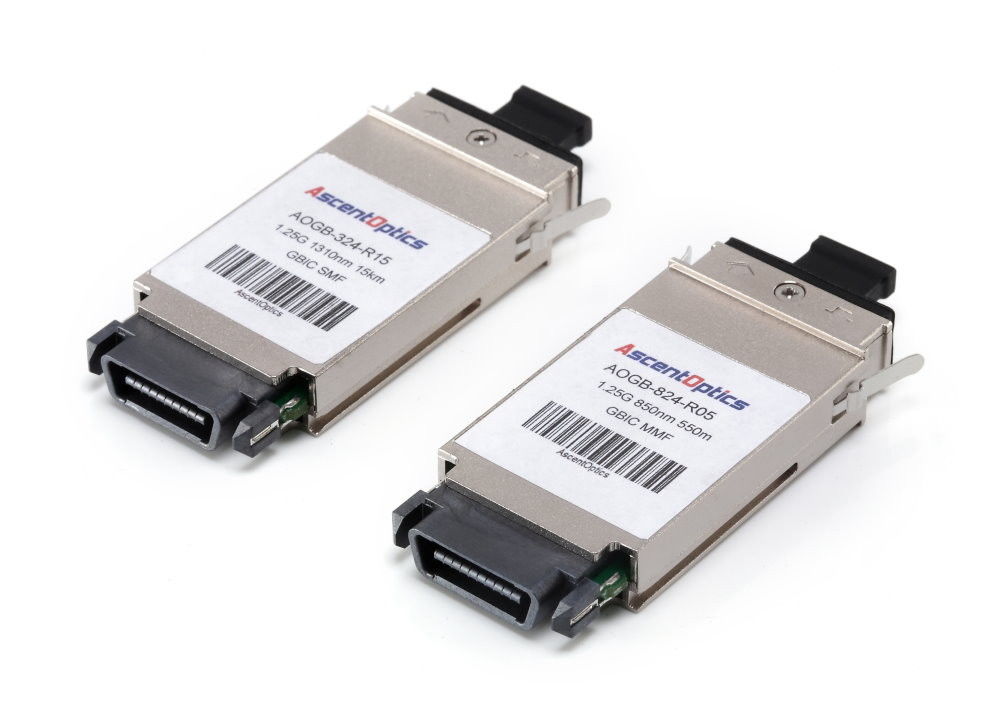

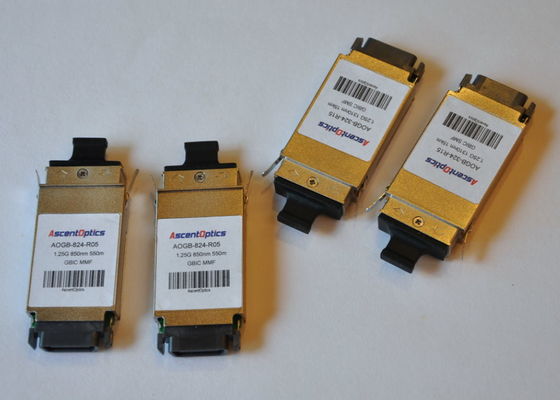

BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel

BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel

  • BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel
  • BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel
  • BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel
  • BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel
BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel
Product Details:
Place of Origin: Shenzhen,China
Brand Name: AscentOptics/Neuter, OEM
Certification: CE,FCC,RoHS
Model Number: AOGB-5324-R15
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Product Name: GBIC Transceiver Module DDM/DOM: Digital (optional)
Datarate: 1.25G Application: GE/FC
Connector: SC Distance: 15km
High Light:

ethernet optical transceiver

,

sfp gigabit ethernet



BIDI GBIC Transceiver Module SC 15km Rx1310nm For 1.0625 Gb/s Fibre Channel




Specification:



P/N

AOGB-5324-R15

Datarate

1.25G

Wavelenth

Tx1550nm/Rx1310nm

Distance

15km

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

Digital (optional)

Connector

SC

Application

GE/FC

Operating Temperature

0~ +70

Voltage Supply

3.3V / 5V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM





Description:



Gigabit interface converter (GBIC) is a standard for transceivers, commonly used with Gigabit Ethernet and fibre channel . By offering a standard, hot swappable electrical interface, one gigabit port can support a wide range of physical media, from copper to long-wave single-mode optical fiber.

The AscentOptics`s GIBC (Gigabit Interface Converter) is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. AscentOptics`s GBICs can be interchanged on a wide variety of Switches and Routers and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, 1000BASE-CWDM interfaces on a port-by-port basis.





Applications



  • 1.0625 Gb/s Fibre Channel
  • 1.25 Gigabit Ethernet





Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
