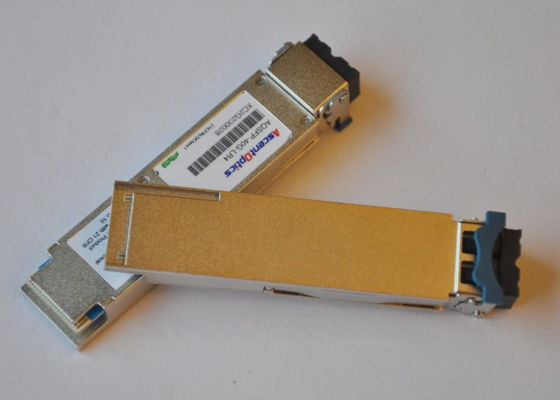

40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers

40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers

    • 40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers
    • 40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers
    • 40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers
    • 40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers
    • 40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers
  • 40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: AscentOptics/Neuter, OEM
    Certification: CE/FCC/RoHS/TUV/UL
    Model Number: 40G-QSFP-SR4-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
    Delivery Time: Within 1-3 working days after PO confirmed
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50,000pcs/Month
    Detailed Product Description
    Product Name: QSFP + Optical Transceiver Datarate: 40G/ps
    Distance: 10KM Wavelenth: 4 CWDM Lane 1270 1290 1310 1330
    Application: 40G Ethernet/ 40G Infiniband DDM/DOM: YES


    40gbase-lr4 SMF QSFP+ Optical Transceiver 1310nm 10km For Data Centers


    Description:

    The Quad Small Form-factor Pluggable ( QSFP or QSFP+) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic cable. It is a industry format jointly developed and supported by many network component vendors. QSFP+ transceivers are designed to support Serial Attached SCSI,40G Ethernet, 20G/40G Infiniband, and other communications standards.The QSFP Transceiver include 40GBASE-SR4 and 40GBASE-LR4 for different applications.

    The AscentOptics 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.


    Features
    • 4 CWDM lanes MUX/DEMUX design
    • Up to 11.2Gbps data rate per wavelength
    • QSFP+ MSA compliant
    • Up to 10km  transmission
    • Operating case temperature: 0~70C
    • Maximum 3.5W operation power
    • RoHS compliant


    Applications

    • 40G Ethernet
    • Infiniband interconnects
    • 40G Telecom connections
    • Data Centers



    Specification:



    P/N

    AQSFP-40G-LR4

    Datarate

    40G/ps

    Distance

    10KM

    Wavelenth

    4 CWDM Lane 1270 1290 1310 1330

    Media

    SMF

    DDM/DOM

    YES

    Connector

    LC

    Application

    40G Ethernet/ 40G Infiniband

    Operating Temperature

    0℃~ +70℃

    Voltage Supply

    3.3V

    Certification

    CE/FCC/RoHS/TUV/UL

    Brand

    AscentOptics/Neuter, OEM



    AscentOptics 40G QSFP+


    Item No Data Rate Distance Wavelength Connector Media
    AQSFP-40G-SR4 40G/ps 100M 850nm MTP/MPO MM
    AQSFP-40G-CSR4 40G/ps 300M 850nm MTP/MPO MM
    AQSFP-40G-IR4 40G/ps 2km 4 CWDM LC SM
    AQSFP-40G-LR4 40G/ps 10km 4 CWDM LC SM





    Competitive advantage:


    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
    4. OEM/ODM  Customized label
    5. Keep stock,Fast delivery



    40gbase-lr4 SMF QSFP + Optical Transceiver 1310nm 10km For Data Centers
